1 Channel Passive Video Transceiver (HD TVI/HD CVI/AHD)
Specialty:
It is a passive high definition TVI transmitter, small size and easy installation, transmission distance of color signal up to 200m,
It is very suitable for middle distance video surveillance, such as office building,community, School and hospital etc.
Features:
Hybrid Passive Balun/No Power Required.
Real-time Transmission over UTP cat5e/6
Compatible with all HD-TVI,CVI ,AHD and 4k analog camera
Stackable Design, Extend One Channel to Multi-Channel
Real-time Transmission over UTP cat5e/6
Super Interference Rejection
Transmission Signal: 4K, Max200M,1080P, Max.250M 720P,Max.200M
Built-in Surge & Transient Protection.
Specifications:
| Item | Description |
| Transmission distance | 720P:300m (max) 1080P:250m (max) EX-SDI:70M(max) |
| Category Type | UTP CAT5/5E/6 |
Impedance | Coax, Male BNC 75 ohms unbalanced UTP, RJ45 100 ohmsbalanced |
| Video Input/Output | Male BNC Connector |
| Video Input/Output | Twisted-pair |
| Coaxial cable connector | 2KV(common-code) Per: IEC1000-4-5 |

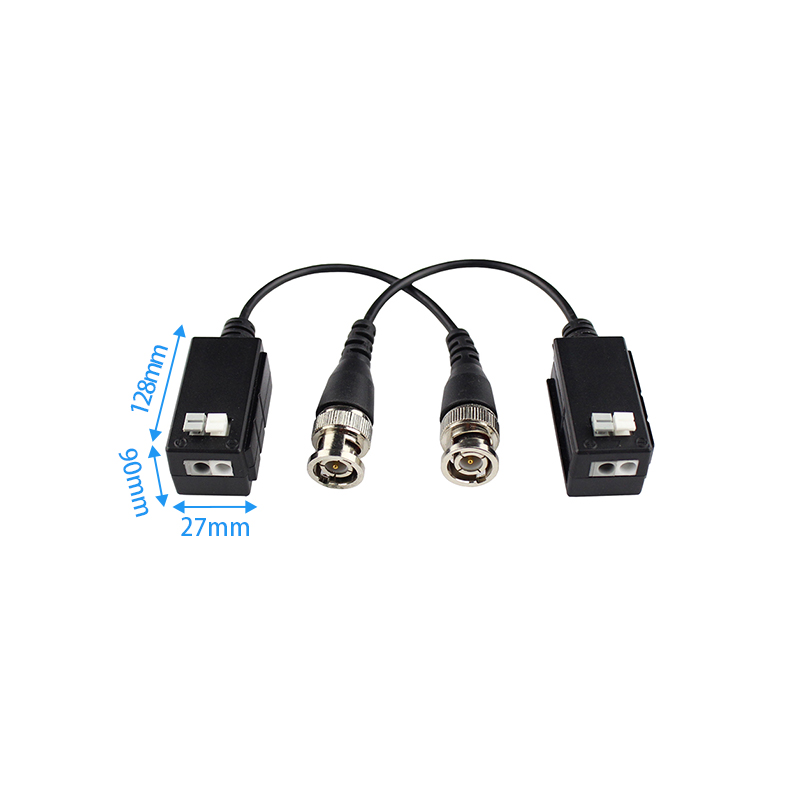

| Size of Casing | 90x128x27mm |
| Shell | ABS+PC |
| Color | Black |
| N. W. | 25g |
| MTBF | >10000H |
| Operating Temperature | -10-55°C |
| Humidity | 0-95% (non-condensing) |
