4/8/16 Channel 8K/HD Power Supply Passive Video Receiver
Description:
The receiver is a UTP transceiver that can transfer HD video and power at the same time. The product adopts Cat5/5e/6 as transmission medium to transfer 4/8/16 CH HDCVI/HDTVI/AHD signal and provide power for camera in 300m to simplify the project. The product features long distance, high quality transmission, strong antiinterference. It's recommended in CCTV surveillance system
Feature:
Receive 4/8/16 channels HD video and provide power supply;
Compatible with HDCVI/HDTVI/HDSDI/AHD/4K/8K;
Output DC 12V 72W/144W/288W power supply;
Color HD video transmission distance(passive to passive):
HDCVI 720P: 300m /1080P: 250m;
HDTVI 720P/1080P: 200m;
AHD 720P: 300m/1080P: 200m;
HDSDI: 100m;
4K: 200m/8K: 100m;
Power supply transmission distance up to 300m, providing max DC 12 V 18W for each channel
Power LED, Overload Protection, short ciecurt LED
Plug and play, simple installation;
Super surge protection and interference rejection
Specifications:
Item | Description | |||
Function | Channels | 4 Channel | 8 Channel | 16 Channel |
HD Video Transmission Distance | HDCVI 720P: 300m /1080P: 250m; HDTVI 720P/1080P: 200m; AHD 720P: 300m/1080P: 200m; HDSDI: 100m; 4K: 200m/8K: 100m | |||
Power Transmission Distance | 300m(Max DC 12V 24W for each channel) | |||
Video Properties | Video Con nector | BNC-M | ||
UTP Cable Con nector | RJ45 | |||
Compatibl e With | HDCVI/HDTVI/AH D | |||
Signal Transmission Band | 0- 65MHz | |||
Interference Rejection | >60dB | |||
Surge Protection | 2KV 10/700us Per IEC61000-4-5 | |||
Protection | ESD | Contact Discharge:6000V Air Discharge:8000V IEC61000-4-2 1995 | ||
Reliability | MTBF | > 20000h | ||

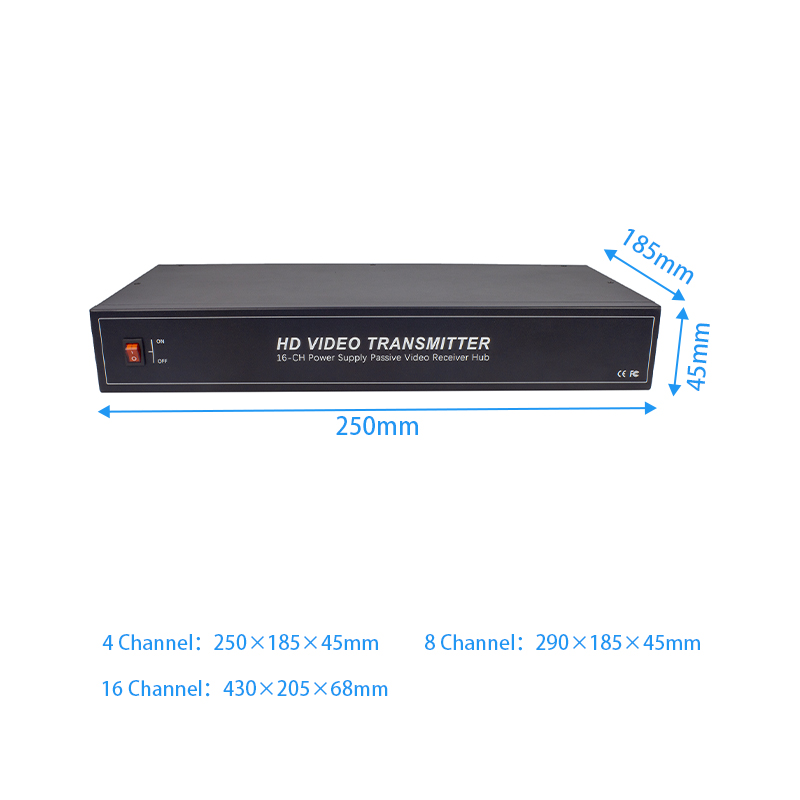

Physical Properties | Size(LWH) | 250×185×45mm | 290×185×45mm | 430×205×68mm |
Ou ter Shell Material | Iron Metal | |||
Color | Black | |||
N.W. | 1.20kg | 1.50kg | 2.80kg | |
Environmental | Operatio n Temperature | 0°C- 55° C | ||
Storage Temperature | -20°C-88 °C | |||
R elative Humidity | 0%-95% (non-condensing) |
