Brand CENTROPOWER
Model CT-POC01-VP
Color Black
Spec HD Video&Power Transmitter&Receiver
0755-23200933
DetailFile



Single Channel HD Video&Power

Transmitter&Receiver over Coax Cable


Feature:

  • Real-time Transmission over Coaxial Cable, thedistance is up to 400 meters

  • Compatible with all HD-TVI,CVI and AHD analog camera

  • One Coax Cable for Video & Power,No needadditional power cable. Reduce Cost

  • Built-in Surge and Lightning Protection

  • Super Interference Rejection


Specifications:

ItemDescription
VideoCompatible FormatHDTVI, CVI, AHD
Max Distance720P/1080P: 400m(Max.)
ImpedanceCoax, Male BNC 75 ohms unbalanced
Anti-interference>60db
Coaxial Video ConnectorBNC Male
Wire TypeCategory TypeCoax 75-5/75-3
Impedance75 ohms
PowerPower Input24-36V   DC
Power Transmission12VDC,12W(Max.) ; 0-400m
ProtectionSurge ProtectionRenewable Solid State Surge Protection
Coaxial cable connector2KV(common mode), Per:IEC1000-4-5
MechanicalHousingABS Materials
Body ColorBlack

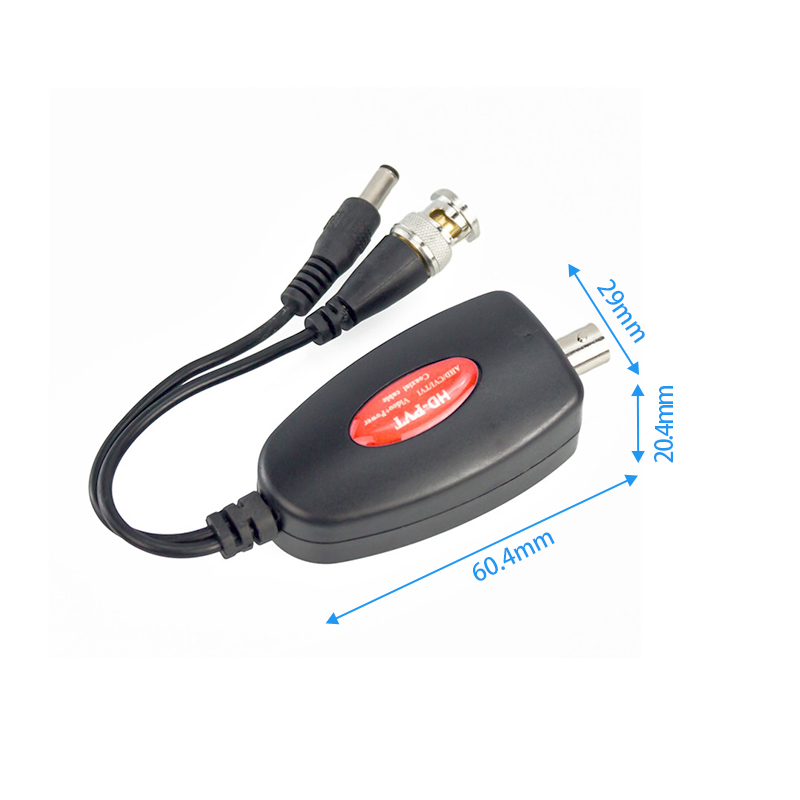

Dimensions60.4x29x20.4MM(BNC Connector & cable excluded)
Net Weight120g
EnvironmentalOperating Temperature-10 ~ 55℃
Storage Temperature-20 ~ 70℃
Relative Humidity0~95%(non-condensing)
Applied DevicesCCTV Cameras , Monitors, DVR and other CCTVequipments




Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
