48RJ45 + 4SFP (1G + 10G) Managed PoE Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Brand CENTROPOWER
Model PoE-7352-48T
Color Grey
Spec Managed POE Switch, 48 Gigabit RJ45 + 4 10G SFP
0755-23200933
DetailFile

    Managed PoE Switch, 48 Gigabit + 4 10G SFP

Description:

    The PoE-7352-48T-800W is managed PoE switch, is designed for the edge ofthe accessand LAN to provide high-quality network connections. ThePoE-7352-48T-800W provides 48 10/100/1000Base T ports and 4 10GigabitSFP+,It provides 48 POE Injector
    Features


  • Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z IEEE802.3af/at/bt,IEEE802.3ad

  • Provides 48 10/100/1000Base-T ports and 4 10Gigabit SFP+

  • Provides 48 PoE ports,1-4 ports support IEEE802.3af/at/bt, 5-48 ports support IEEE802.3af/at,

  • 800W Built-in power supply

  • High back-plane bandwidth 176 Gbps

  • IEEE802.3x Flow control

  • Surge protection for power port and data ports

Specifications:

ItemDescription

Power

Power supplyBuilt-in power supply
Voltage RangeAC100~240V
Consumption800W (770W f or PoE)

POE output for ea ch port

Port 1- 4 support for IEEE802.3 a f/at/bt and power up to 95W

Port 5-48 support for IEEE802.3af/at and power up to 30W

EthernetSpeed

1~48 Port: 10/100 /1000Mbps

10G SFP: 10G SFP Port

Transmission Distanc

100Meter(328ft)for RJ-45

2Km 20Km for SFP Port The optical module is optional

Network SwitchEthernet StandardIEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3z / 802.3af/at/bt / 802.3ad
Switching capacity176G
Transfer Rate14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
1,488,0000pps for 10000Mbps
MAC Address32K MAC address table
G1,G2-CmoboOnGreenThe port is connecting
LINK/ACTOnGreenThe port is connecting
Blinks-The port is receiving or transmitting data
Off-The port is not linked successfully with the device

POE

(12...36)

OnOrangePD is connected
Off-No PD is connected or power forwarding fails

Working

Environment

Working Temperature-40~70℃
Storage Temperature-40~75℃
Humidity Non condesing10~85%

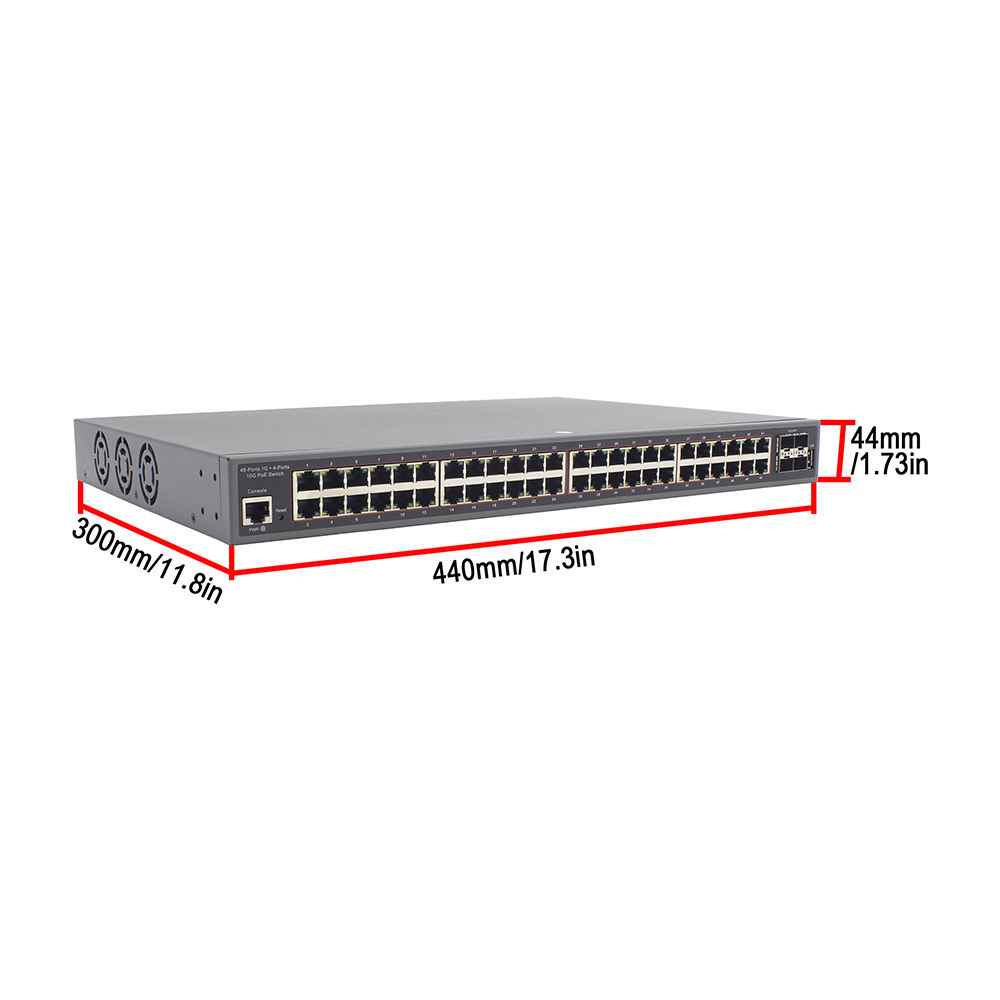

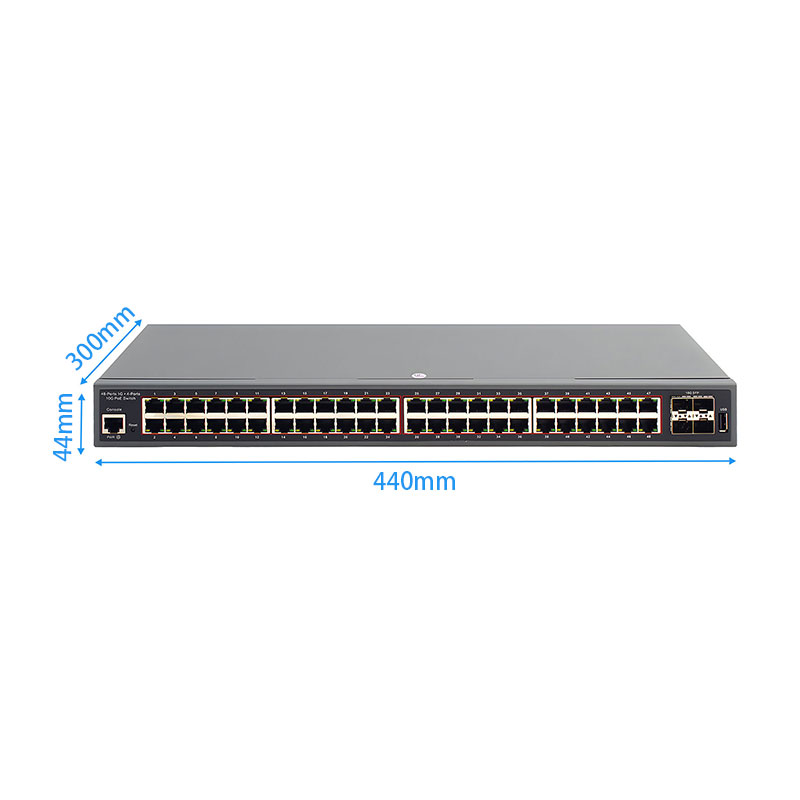

MechanicalDimension167mm ×72mm x 142.5mm
ColorWhite + Black







PoE-7352-48T-800W Web_User_Guide.pdf
PoE-7352-48T-800W CLI_User_Guide.pdf




Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
