Model PoE-EOC01-WE
Color White
Spec Outdoor active Ethernet 800M coaxial extender, IEEE802.3AF/AT, PoE power input, POE output.

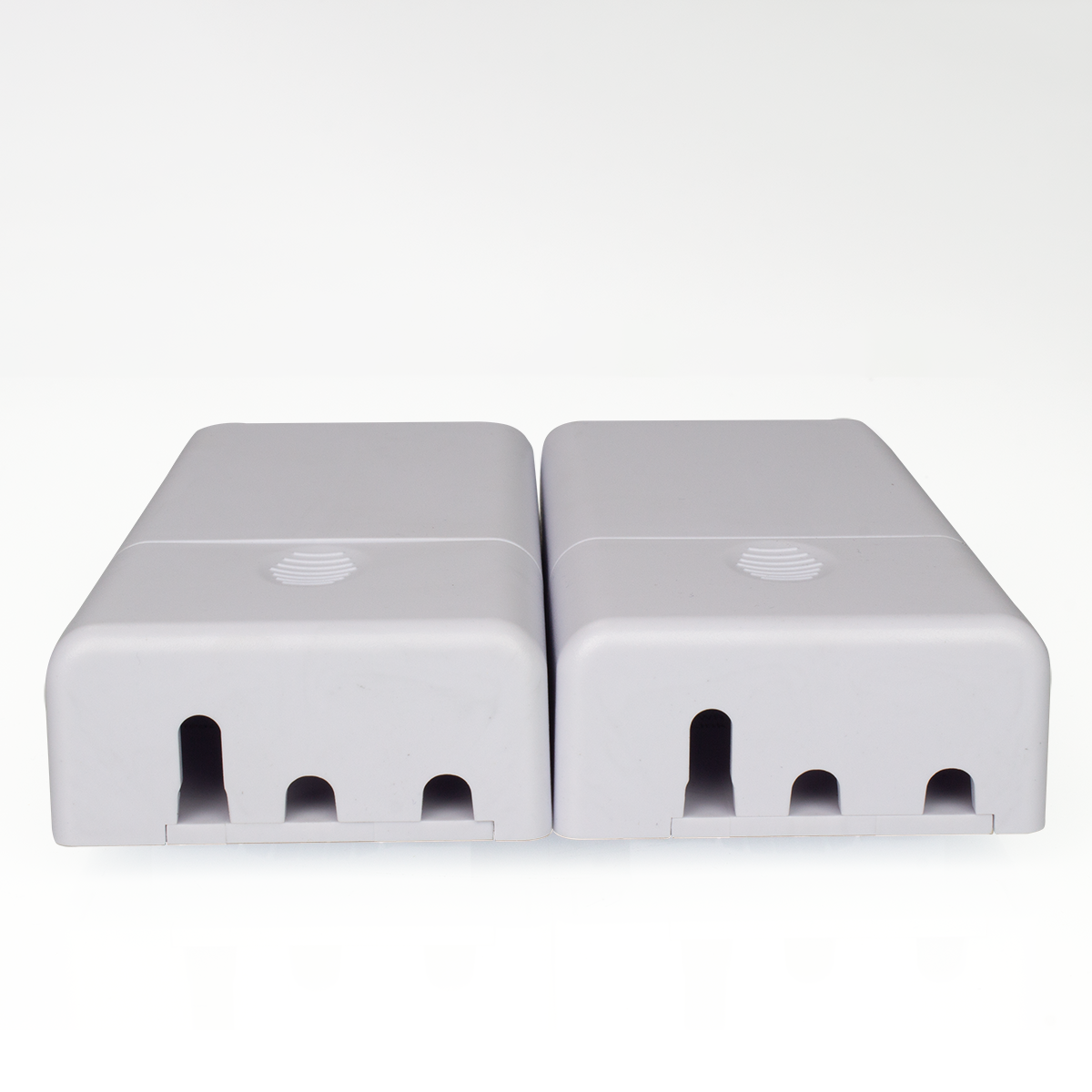

800M POE/EOC Converter


    PoE-EOC01-WE is a PoE/EOC converter for ultra-long distance data transmission and power supply, which converts the input PoE to coaxial cable transmission


  • Supports IEEE802.3,IEEE802.3u and IEEE802.3x Standards.

  • Supports IEEE802.3af and IEEE802.3at power standards.

  • 1x RJ-45 @10/100Mbps and 1 BNC.

  • Supports RG59 Coaxial cable. 400 meters @100Mbps and 1000 meters @10Mbps.

  • MDI/MDIX self-adaption.

  • Long-range power transmission via Coaxial Cable.

  • Operating temperature: -30~65℃


ePOE TransmitterePOE Receiver
Function Port1 10/100 Mbps RJ45 Port, 1 CoaxiaI cable Port
Transmission BandwidthRG59 coaxial cable 400m/100Mbps 800m/10Mbps
PoE ProtocolIEEE8023af. IEEE802 3at
Network StandardIEEE802 3, IEEE802 3u, IEEE802 3x

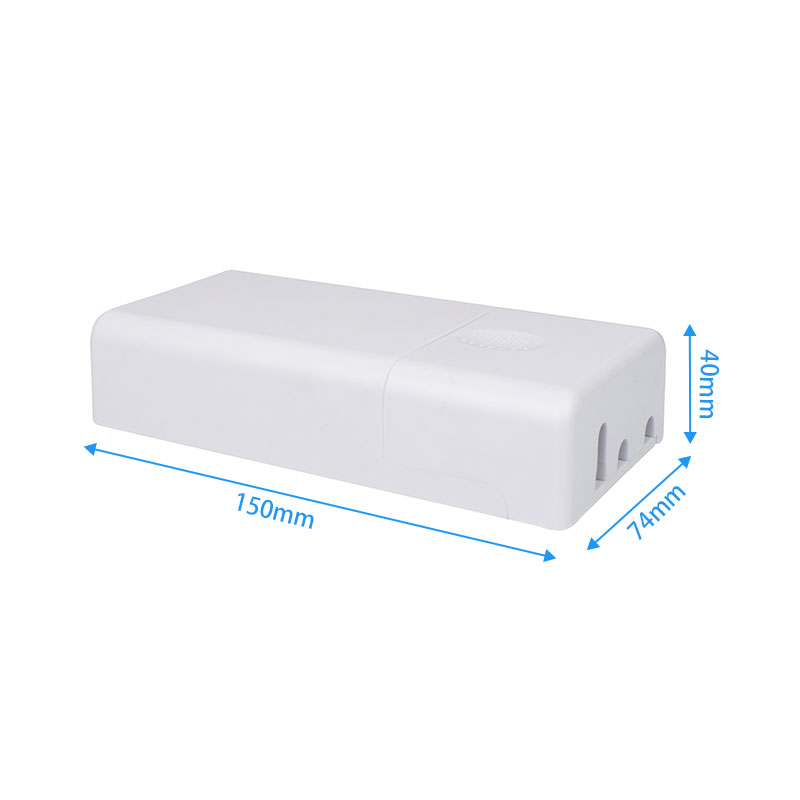

Dimensions150 x 74 x 40 mm (5.91 x 2.91 x 1.57")
EnclosureWhite Polycarbonate
Operating Temperature-30 to 70℃(-20 to 158℉)
Operating Humidity5 to 95%Non condensing
PoE pin assignmentV+(Rj45 Pin 12,45) V-(Rj45 Pin 36,78)
Power Consumption
Max. power Consumption30W

Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
