Brand CENTROPOWER
Model PoE-EX203-2HWE
Color White
Spec PoE-EX203-2HWE only needs to be connected with network cable, 1 in and 2 out, each downstream port re-extended by 100 meters
0755-23200933
DetailFile

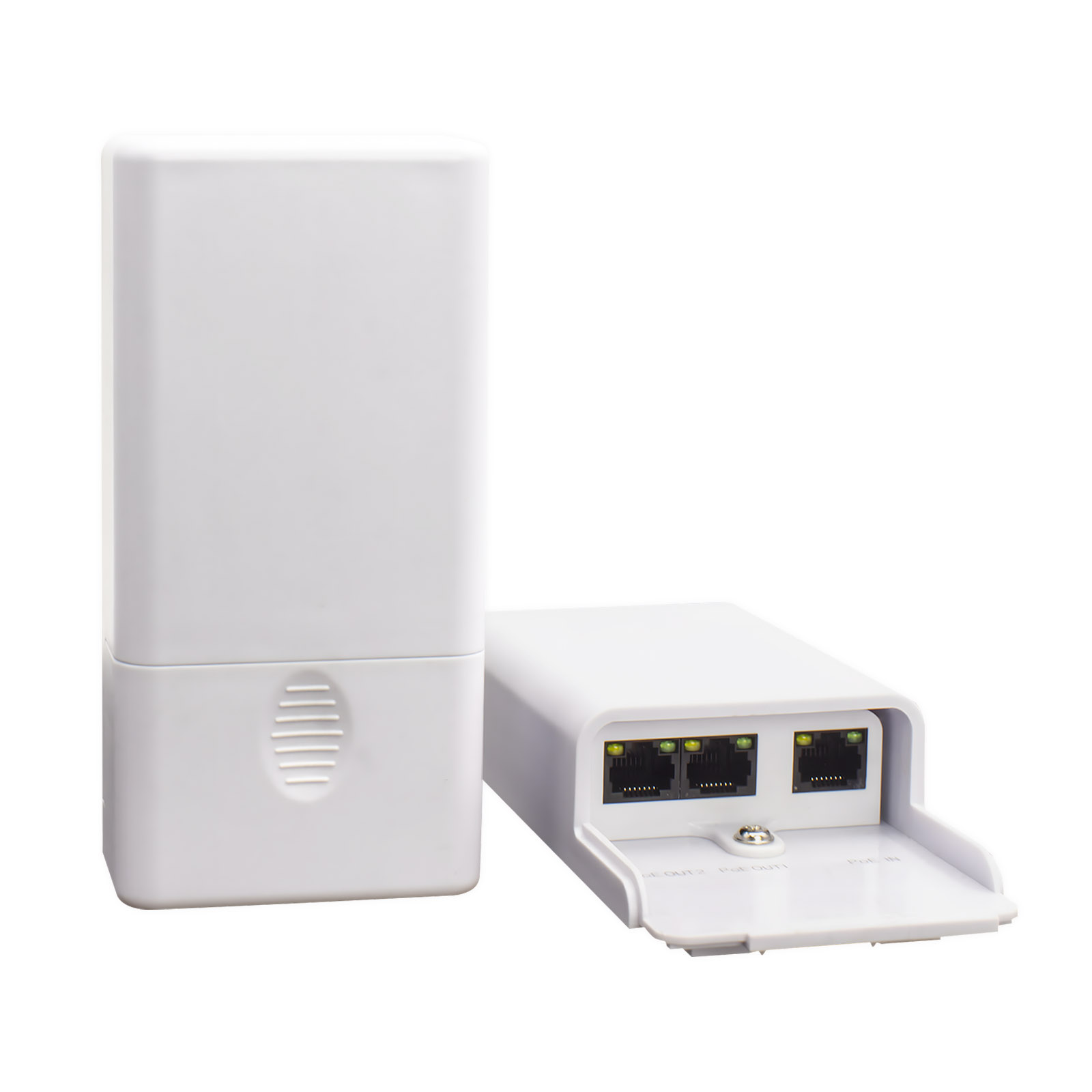

6KV 100Mbps Outdoor Rainproof Passive POE Extender


Description：

PoE-EX203-2WE only needs to be connected with network cable,1 in and 2 out, each downstream port re-extended by 100 meters

Feature:

  • Outdoor rainproof PoE extender

  • PoE Output support IEEE 802.3af

  • total power 30W

  • From one connection to twe connections

  • Ethernet range extended by another 100 meters

  • No additional power supply is required.

  • 10/100Mbps adaptive

  • Pole mountable and wall mountable

  • Compact size weatherproof enclosure

  • 6KV surge lightning protection

Specifications:

Networking Interfaces10/100Mbps adaptive Ethernet, 3 RJ45 ports
Network mediumEach output port is extended by an additional 100 meters
Ethernet StandardSupport IEEE 802.3af Output max 15.4W, total power 30W

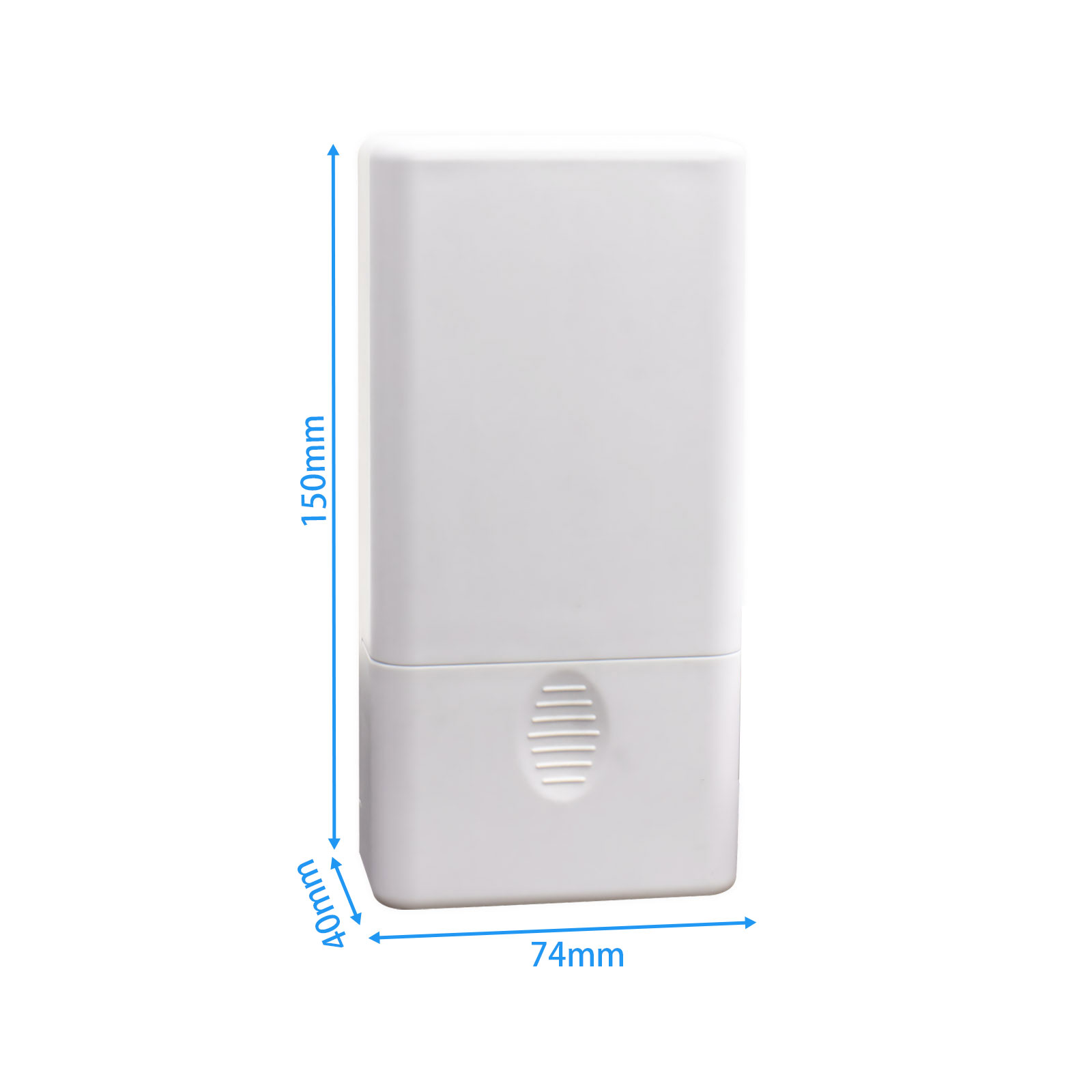

Dimensions150mm x 74mm x 40mm (5.91in x 2.91in x 1.57in)
Weight300g
EnclosureWhite Polycarbonate
Operating Temperature-30~70℃(-20~158℉)
Operating Humidity5 to 95％, Non condensing
PoE pin assignmentV+(Rj45 Pin 1,2) V-(Rj45 Pin 3,6)
Switching capacity100Mbps
Typical Power Consumption1.5W
Surge Protection6KV Surge protection, requires ground wire






Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
