Brand CENTROPOWER
Model PoE-3606-4P
Color Black
Spec 5 PoE+1SFP Gigabit Full-Managed Industral Switch
0755-23200933
DetailFile

Industrial Managed 5(GE PoE+) + 1 Gigabit SFP Gigabit Switch


Description：

POE-3606-4P Gigabit PoE Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the POE-3606-4P features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 65-watt PoE budget on the whole system. All RJ45 copper interfaces of the POE-3606-4P support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Feature:

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • 4-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device and 2 Uplink(1 Gigabit RJ45 + 1 1.25Gbps SFP interfaces)

  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE

  • Circuit protection prevents power interference between ports

  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X

  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates

  • Integrates address look-up engine, supporting 8K absolute MAC addresses


Specifications:

SpecificationsIndustrial PoE Switch, full gigabit, 5 GE + 1SFP
Power SupplyInput 12~56VDC
Ethernet StandardIEEE 802.3/u/z/ab, 10Base-T, 100Base-TX, 1000Base-T and 1000Base-X
Network PortsPoE Ports: 4 10/100/1000Mbps RJ45
Uplink: 1 Gigabit RJ45 + 1SFP(1.25Gbps)
Transmission Distance1~5 Ethernet Port：0~100m
1 SFP: According to different SFP
Transmission Media

5 RJ45 Port：Cat5e/6 UTP cable            1 SFP: LC interface optical fiber

MAC Address List8K
Switch Capacity12G
Surge ImmunityLevel 3, executive standard：IEC61000-4-5
Electrostatic Protection1a touch electric discharge: level 3
1a Air discharge: level 3
Executive standard：IEC61000-4-2
Working Temperature-40℃~ + 85℃
Storage Temperature-40℃ - 85℃
Humidity(non-congeal)0~95%

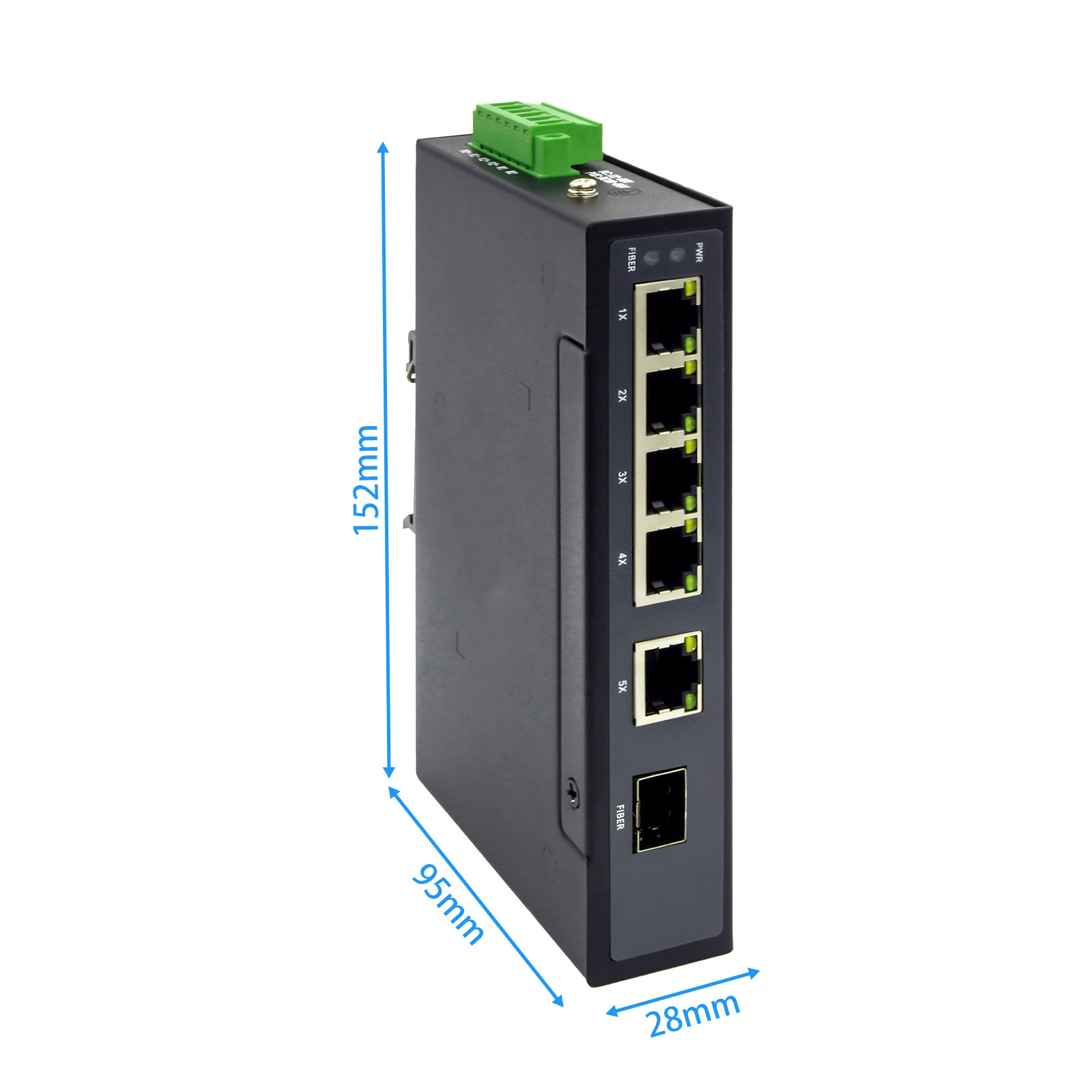

Dimensions152mm×95mm×28mm


Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
