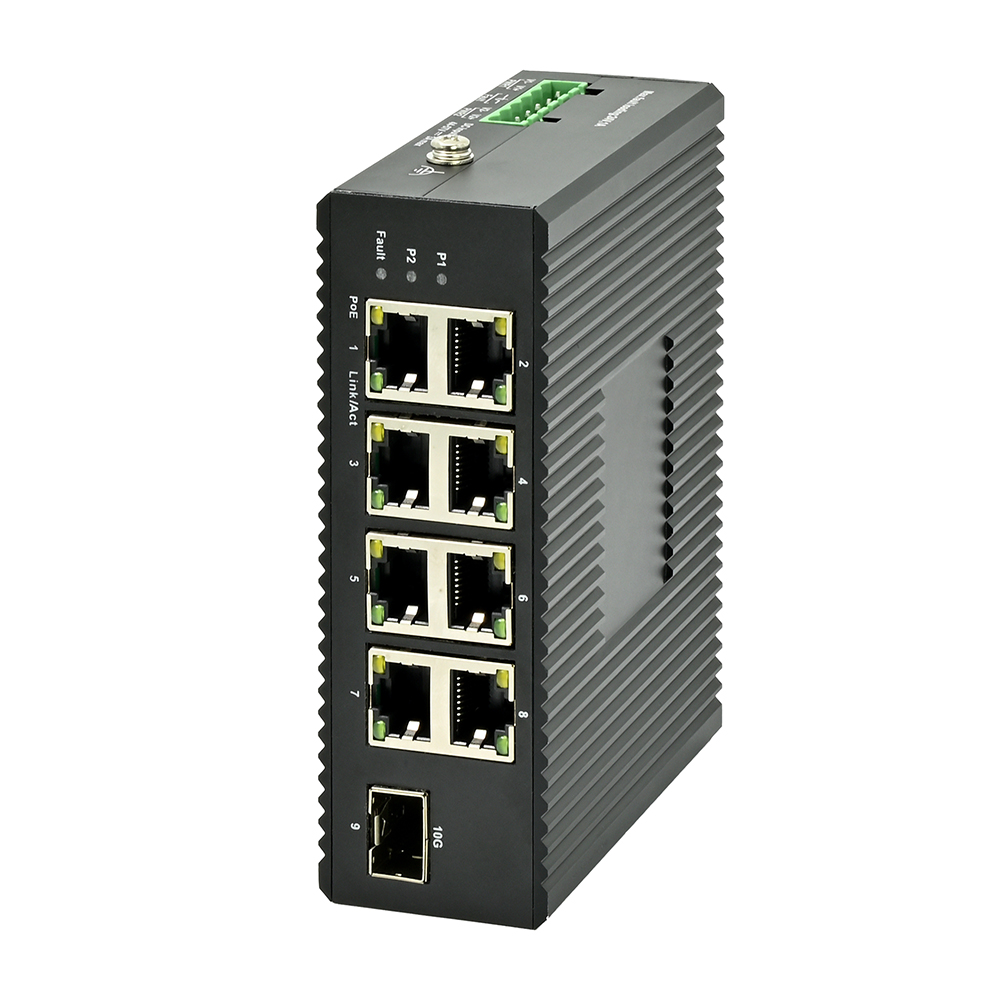

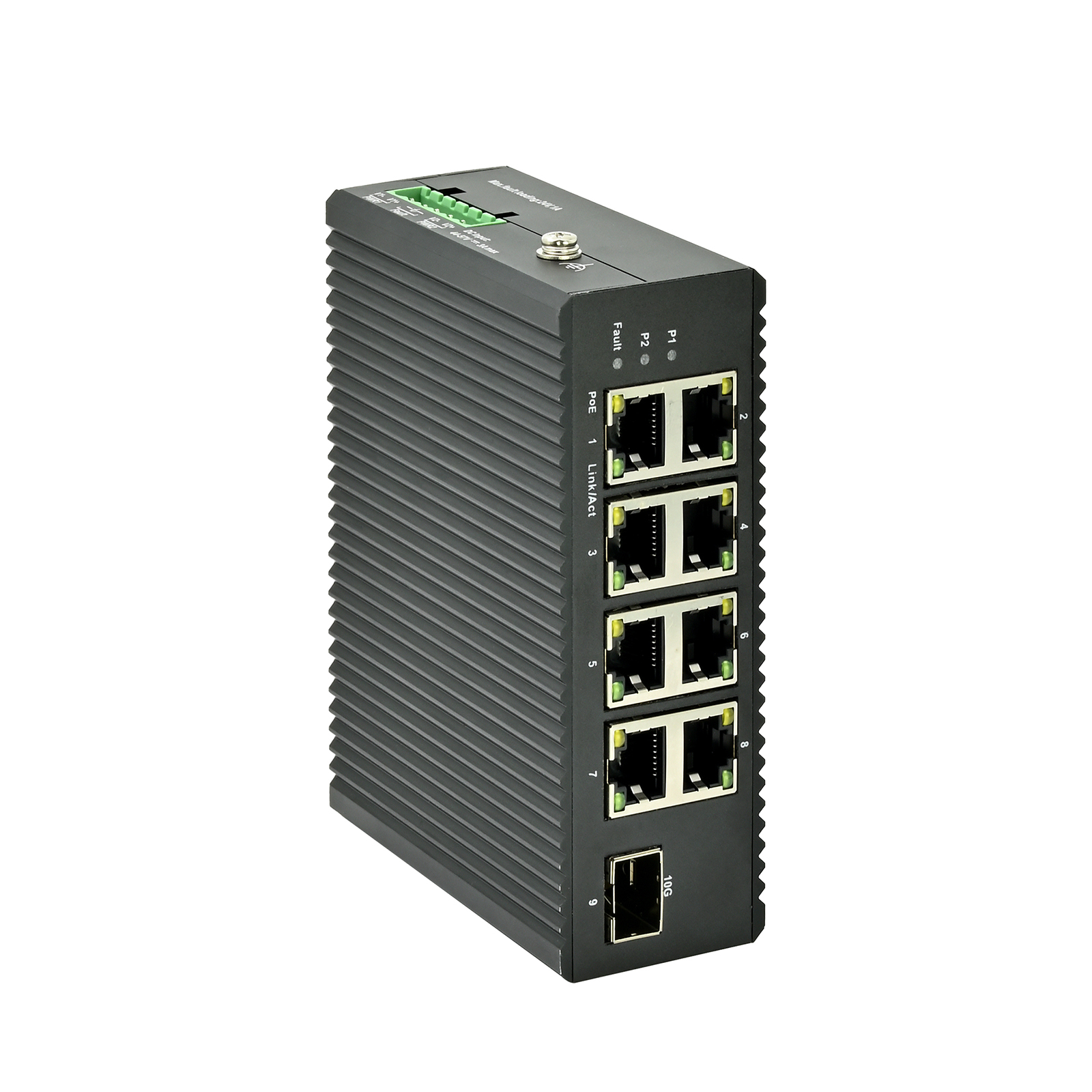

8 x2.5GbE(PoE) + 1 x 10GbE SFP Switch
Description:
PoE-8009F-8I The 9 Port/8 PoE 2.5GbE PoE Switch is fully integrated to support security monitoringproviding fast packet forwarding capability and fast Ethernet transfer rates by utilizingthe appropriate bandwidth to ensure clear images/smooth transmission and enoughbandwidth for high-definition video.
Features:
Conforms to lEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af/at.
Provides9 10/100/1000Base-T/2.5GbE ports + 1 10G SFP port.
Provides 8 PoE iniectorand 120W Built-in power supply.
High back-plane bandwidth 60 Gbps.
EEE 802.3xflow control.
Specifications:
| Item | Description | |

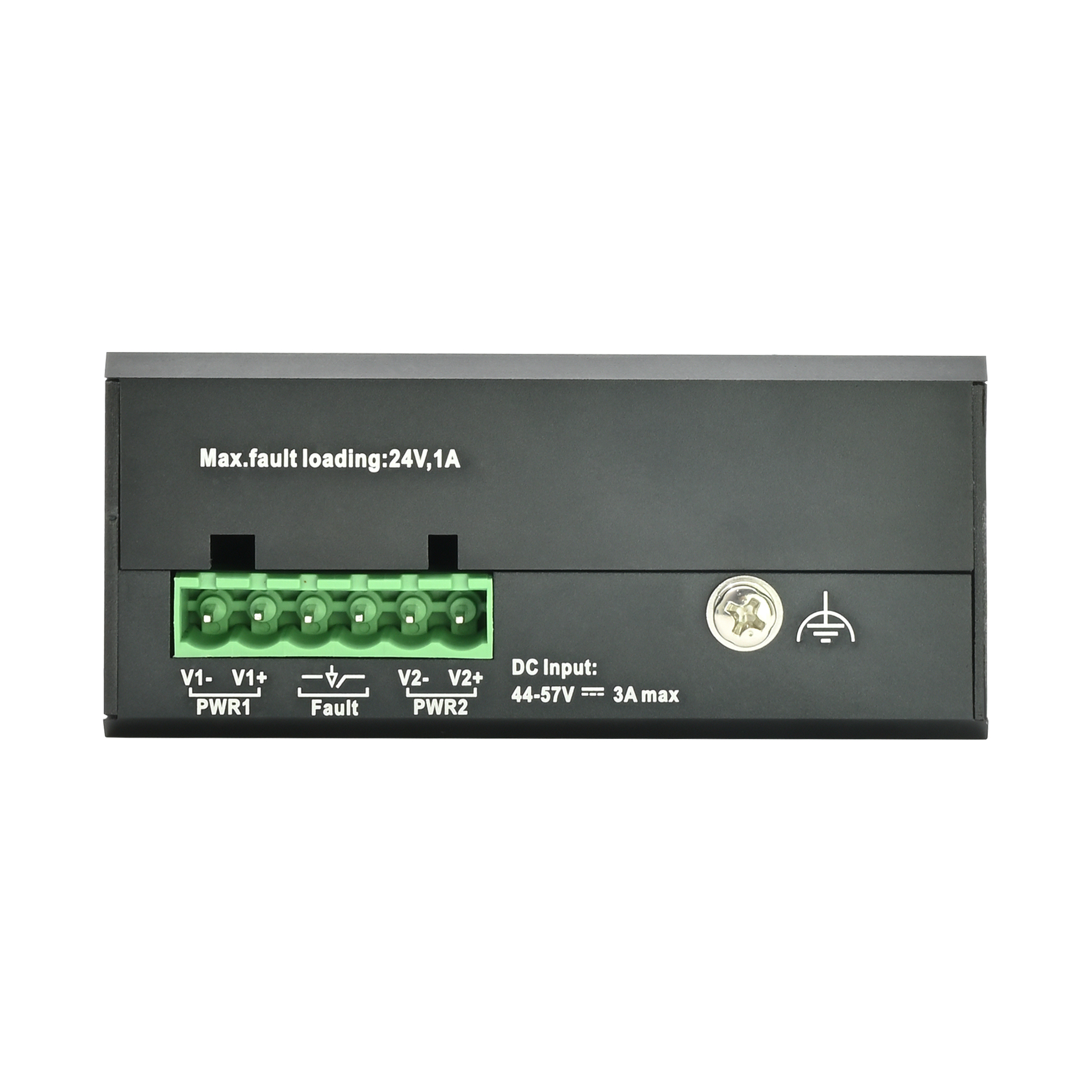

| Power Supply | External Power Supply | |
| Power | Voltage Range | 44-57V DC |
| Ethernet | Speed | 1-8 Port: 10/100/1000/2500 Mbps Uplink: 10 Gbps for SFP |
| Transmission Distance | RJ45: 328 ft. (100 meters) SFP Port: Transmission distances vary with type of SFP module used. | |
| Network Switch | Ethernet Standard | IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3af / 802.3at |
| Switching Capacity | 60 Gbps | |
| Transfer Rate | 14,880 pps for 10 Mbps 148,800 pps for 100 Mbps 1,488,000 pps for 1000 Mbps 3,720,000 pps for 2.5GbE 14,880,000 pps for 10GbE | |
| MAC Address | 4K MAC address table | |
| 9 | On- Green：The port is connecting | |
| LINK/ACT Indicator | On- Green：The port is connecting Blinks--： The port is receiving or transmitting data Off--：The port is not linked successfully with the device | |
| PoE Indicator | On-Orange：PD is connected Off--：No PD is connected or power forwarding fails PoE pin assignment：V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6) | |
| WorkingEnvironment | Working Temperature：-40°C~70°C Storage Temperature:-40°C~70°C Humidity Non-Condensing:0~90% | |
| Mechanical | Dimension:120 x 90 x 40mm Color:Black | |
