10Gbps PoE Injector
Description:
PoE-M931-10G Use with AP, IP camera, IP phone and other networkequipment, Installed in hotels, schools, buildings.villages, etc.
Features:
standard 10 Gigabit network transmission PoE injectorConforms to the lEEE 802.3afat and lEEE 802.3btprotocol, and isolated high-performance high-poweroutput
It adopts standard BT protocol chip and has a variety ofbuilt-in protection circuits
Transmission rate: 10/100/1000/10000Mbps
International wide voltage Ac input(AC100V~240V50/60Hz)
Built-in power supply 52V 150W
PoE power: the maximum power of a single group is 35WWhen the 802.3bt protocol is detected, the two groups ofoutput are equalizedat the same time, and the powerreaches 95W
PoE output pin:(1,2)+/(3,6)-and(4,5)+/(7,8)-, self-adaptive
Ethernet pin: 10 Gigabit data (1,2)/(3,6)/(4,5)/(7,8)
Specifications:
| Item | Description |
| Port | 1 CH, Data IN PoE Out |
| Data Rate | 10/100/1000/10000Mbps |
| Power | Input: AC100~240V 50/60HZRated power: 150W |
PoE Output | Pin Assignment: 1/2(-)3/6(+), 4/5(+)7/8(-) Output Power Voltage: 52VDC Support IEEE 802.3af/at/bt PoE Output Power: 95W MAX |
| Operating Environment | Operating Temperature: -40℃to 70℃ Operating Humidity:20%~95%，non-condensing Storage Temperature: -40℃ to 80℃ Storage Humidity:10%~95%, non-condensing |
| Indicator light | Red light: The power output indicator light is always red when the device outputs normally. Green light: When there is a PoE output, the green light remains on. Yellow light: When the power exceeds 60W, the yellow light flashes. |
| Protection | Overcurrent protection, overvoltage protection, short circuit protection |

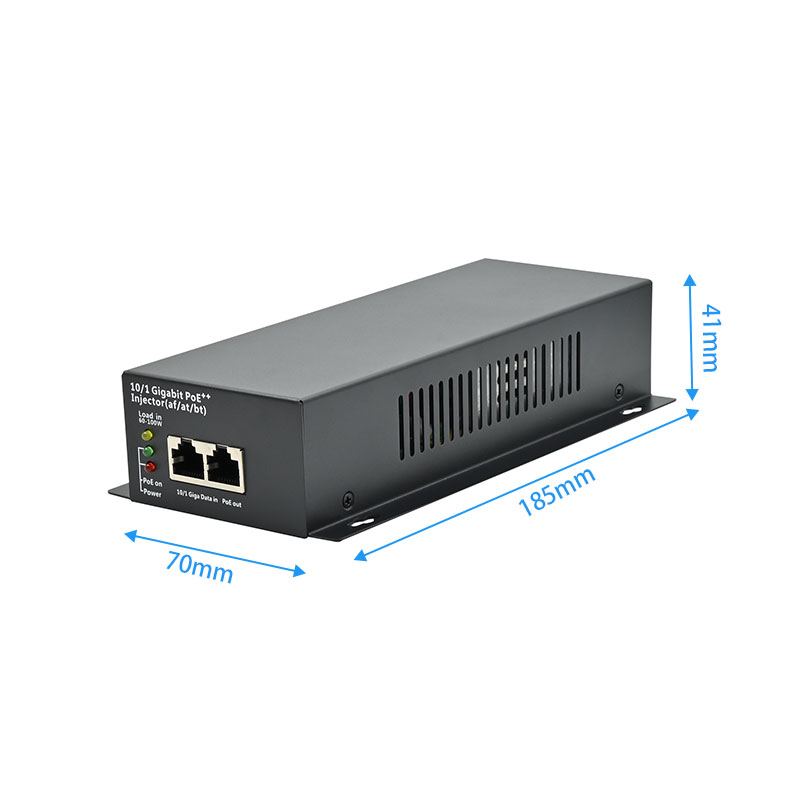

| Product Size | 185×70×41mm |
| Product Shell | Black Metal Shell |
