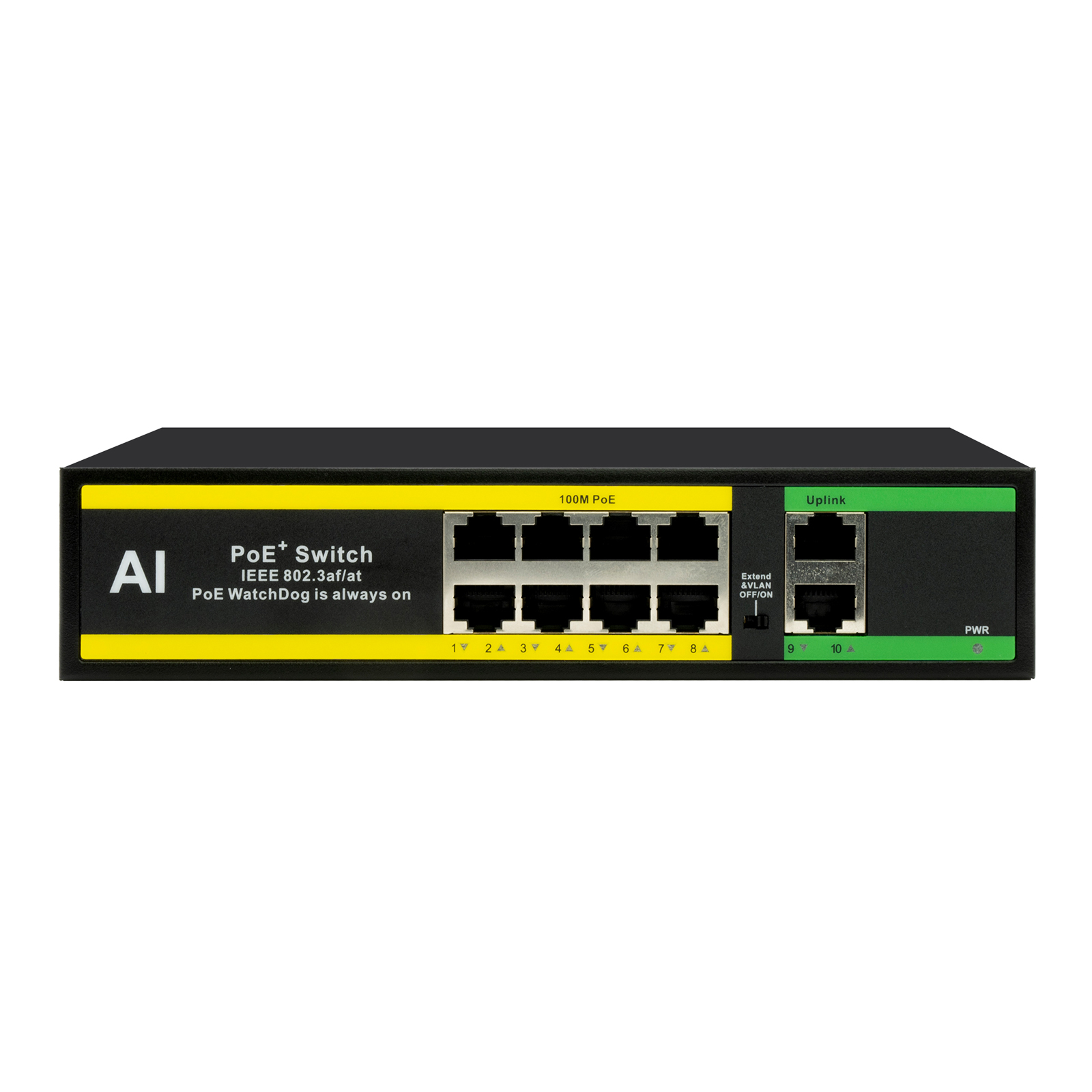

8+2 AI PoE Switch
Description:
PoE-2010-8A-120W AI PoE Switch is a high-performance, low-power fastEthernet PoE switch that automatically detects the network and power supply of the downstream port. It provides 8 10/100/Mbps AI PoE ports and 2 10/100/Mbps RJ45 ports for Uplink. Full line-rate 100Mbps connection to workgroups or servers for plug-and-play, a flexible, non-blocking architecture that users can use regardless of bandwidth and media network.The switch supports half-duplex and full-duplex working modes, each switching port supports adaptive function, and the port adopts store-andforward mode, which provides excellent performance, simple use, convenience and intuitiveness, providing an ideal networking solution for workgroup users or small LAN.
Features:
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at
Provides 10 10/100Base-TX Port
Provides 8 PoE Port and 120W Built-in Power
Supports full-duplex IEEE 802.3X flow control
Supports high-performance QoS features on every port
High back-plane bandwidth 1.2Gbps
Support for Energy Efficient Ethernet (EEE) functions (lEEE 802.3az)
Flexible LED indicator
Support PoE port AI (switch control, when the port has no data traffic within 2 minutes, the port will automatically restart)
PoE Port Support 10Mbps extend to 250meters (switch control)
Specifications:
| Item | Description |
| Power Supply | Built-in power supply |
| Input Voltage Range | AC 100~240V |
| Indicator Light | One power light (red) |
| PoE Power | 120W for 8 PoE Port |
| PoE Output | Each Port Output Max.30W |
| PoE pin assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) |
| Interface | 10 10/100Mbps RJ45 ports (Auto Negotiation / Auto MDI / MDIX), 8 of them are PoE ports |
| Transmission Distance | 100meter for 100Mbps, 250meter for 10Mbps |
| Transmission Media | Cat5/5e/6 standard UTP cable |
| Ethernet Standard | IEEE 802.3 / 802.3i / 802.3u / 802.3af/at |
| Switch capacity | 2Gbps |
| Packet forwarding rate | 1.488Mpps |
| Packet caching | 768Kbits |
| Jumbo frames | 4096-byte |
| MAC Address | 2K MAC address table |
| Link/Act | Green when the signal is connected Orange when the network is connected to PoE at the same time Red when there is PoE and no network Green when there is a network and no PoE |
| Working Temperature | -10℃ to 70℃ (32℉ to 127℉) |
| Storage Temperature | -40℃ to 85℃ (-97℉ to 142℉) |
| Working Humidity | 10% to 90%, Non condensing |
| Storage Humidity | 5% to 95%, Non condensing |

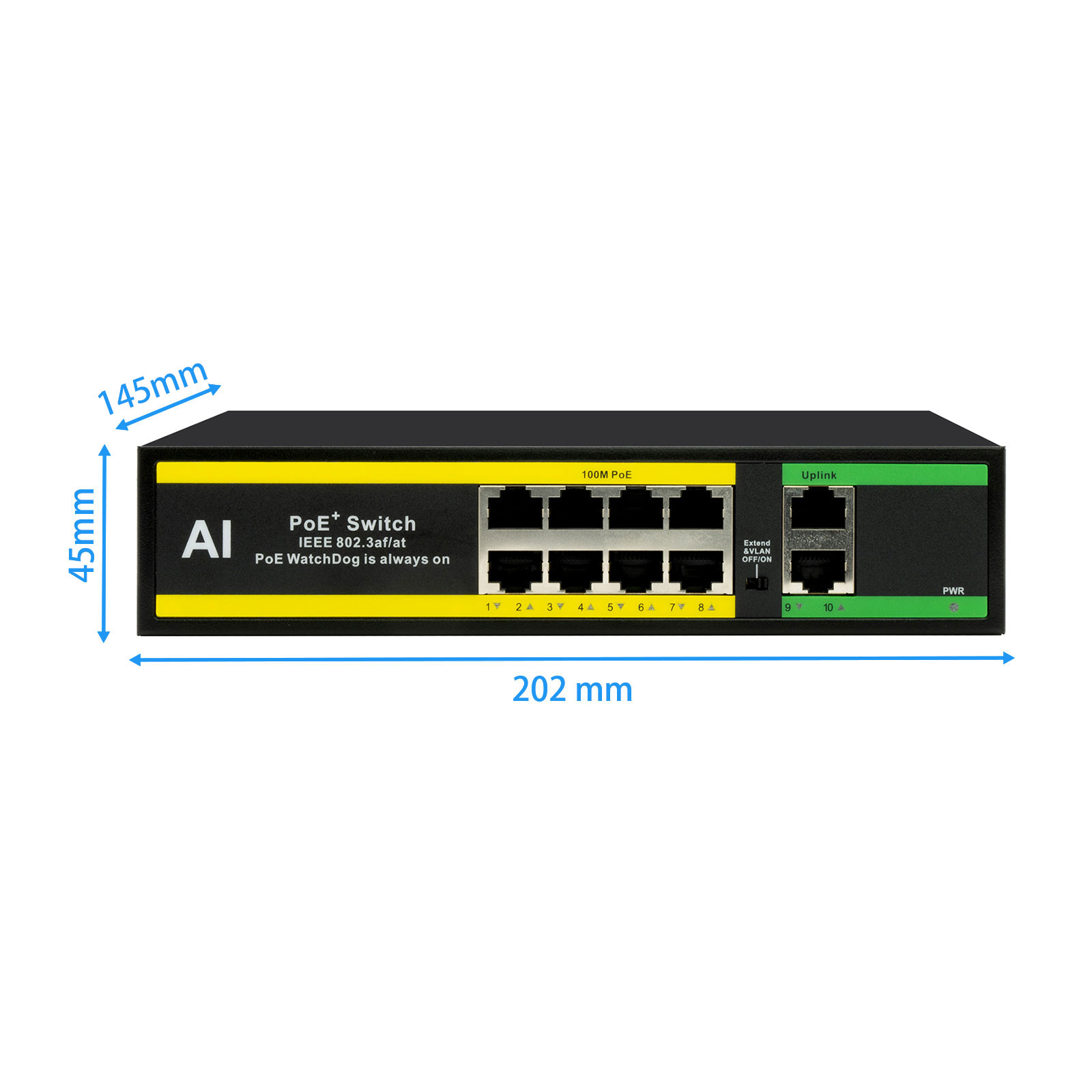

| Mechanical properties | Housing material: Metal case Housing Dimension: 202*145*45mm Housing Color: Black Product Weight: 0.75Kg |
