16GE + 2GF Managed Industrial PoE Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Brand CENTROPOWER
Model PoE-7218F-16I
Color Black
0755-23200933
DetailFile

18Port Gigabit Managed Industrial PoE Switch


Description:

PoE-7218F-16I   Power Over Ethernet (PoE) greatlysimplifies the line deployment of IPcameras and wireless access points,requiring only a single network cableto power and transmit signals.

Features:

  • Layer 2+ Managed Industrial PoE Switch

  • IP address: 192.168.1.200

  • Username/Password: admin/admin

  • With PoE Auto Checking and DHCP functions

  • Conforms to IEEE 802.3, IEEE 802.3u/ab/i/z/x

  • 16-Port 10/100/1000Mbps support PoE output

  • 2-Port 1.25Gbps SFP + 1-Port Console

  • Complies with IEEE 802.3af/at Power over Ethernet

  • Support DC 48-56V Input

  • Auto detects powered device (PD)

  • Remote power feeding up to 100m

  • Supporting 8K absolute MAC addresses

  • High back-plane bandwidth 36 Gbps

  • Aluminum metal housing, rail mounted design

  • Working Temperature: -40°C to 70°C

Specifications:



ItemDescription
Power

Power Supply：Built-in power supply

Voltage Range：

Support DC 12~56V input

DC48-56V input PoE output

DC12-44V input no PoE output

Consumption：250W for 16 PoE Port

Ethernet

Speed：

1~16 Port: 10/100/1000Mbps RJ45

17~18: 1.25Gbps SFP

Transmission Distance：

100Meter(328ft) for RJ-45

SFP module is optional, transmission distance depends of optical module

Network Switch

Ethernet Standard： IEEE 802.3 / 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af/at

Switching Capacity：36 Gbps

Transfer Rate：14,880 pps for 10 Mbps

148,800 pps for 100 Mbps

1,488,000 pps for 1000 Mbps

MAC Address：8K MAC address table

LINK/ACT Indicator

Light on：The port is connected

Light blinks： The port is receiving or transmitting data

Light off：The port is not linked successfully with the device

PoE Indicator

Light on：PD is connected

Light off：No PD is connected or power forwarding fails

PoE pin assignment：V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)

WorkingEnvironment

Working Temperature：-40°C~70°C

Storage Temperature:-40°C~70°C

Working Humidity：20~85%RH (Non-Condensing)

Storage Humidity:5~95%RH (Non-Condensing)

Mechanical

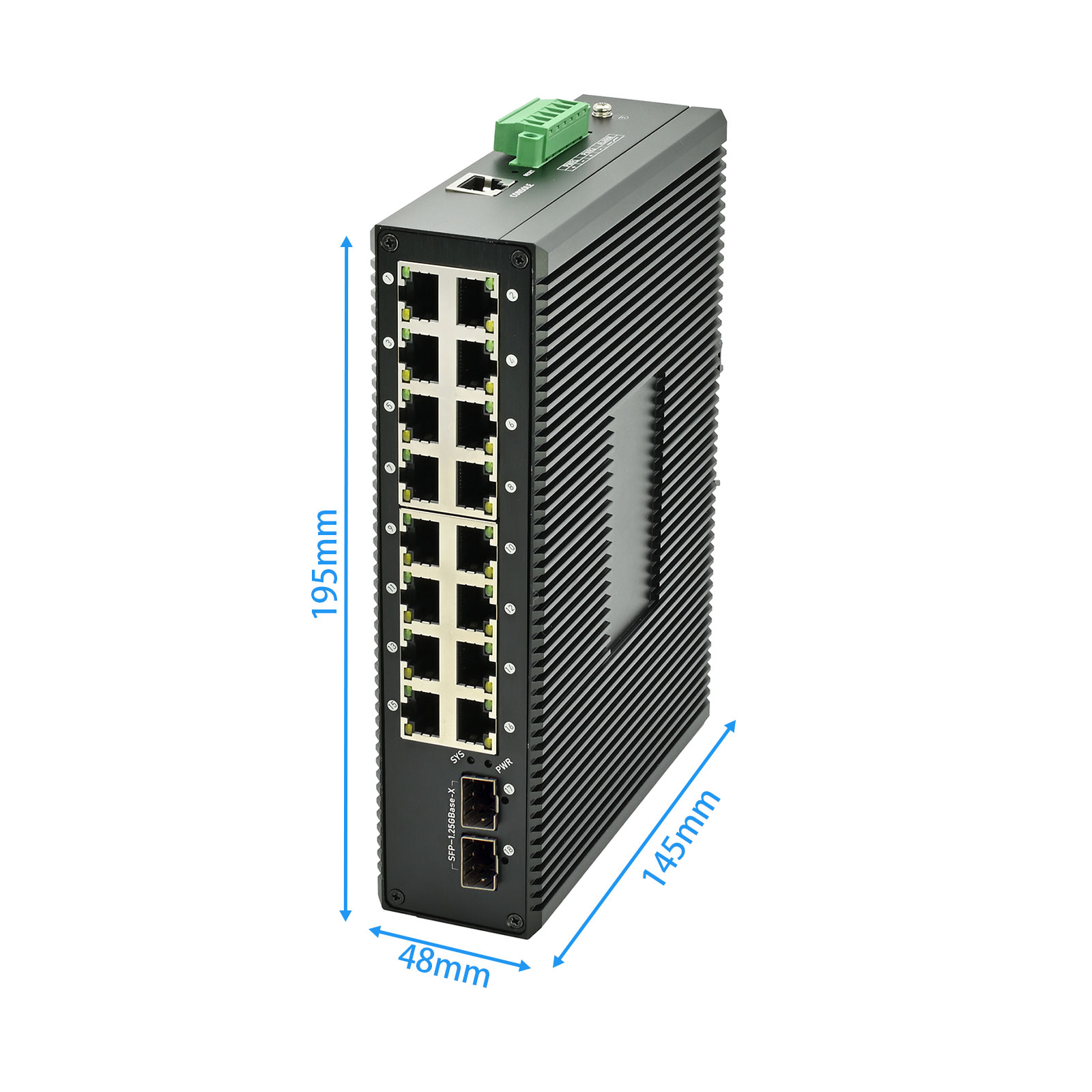

Dimension:195(W)mm×48(H)mm×145(D)mm

Weight：1.3kg

Shell：Aluminum rails mount metal housing










Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
