• Made entirely of aluminum
• 18*18*20in
Brand CENTROPOWER
Model CT-DB20A-WP
Color Silvery
0755-23200933
DetailFile

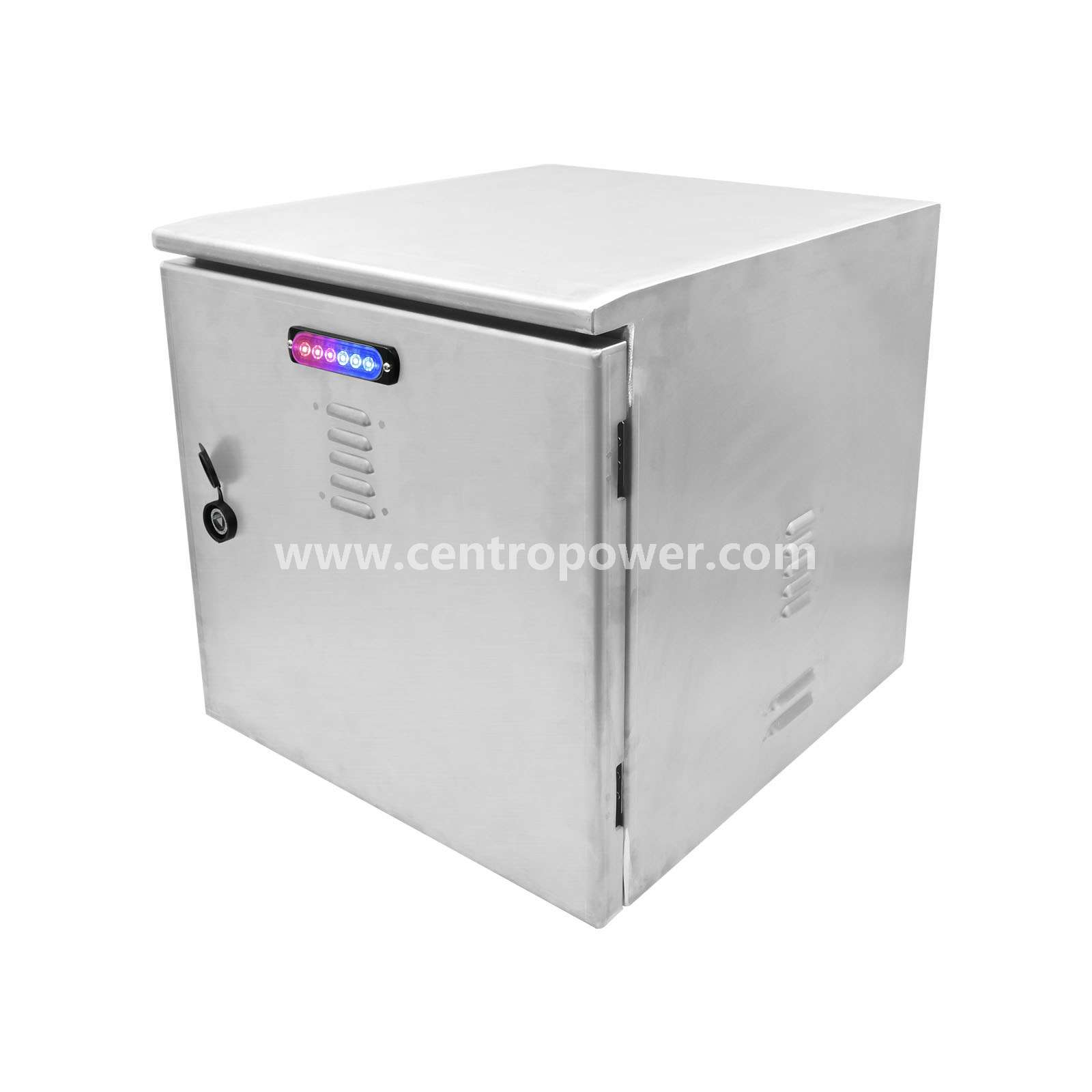

Outdoor Weatherproof Aluminum Box（Customizable）


Feature:

  • With sealing strip, it is weather-proof, fire-proof and high temperature resistantcompared with traditional sealing strip.

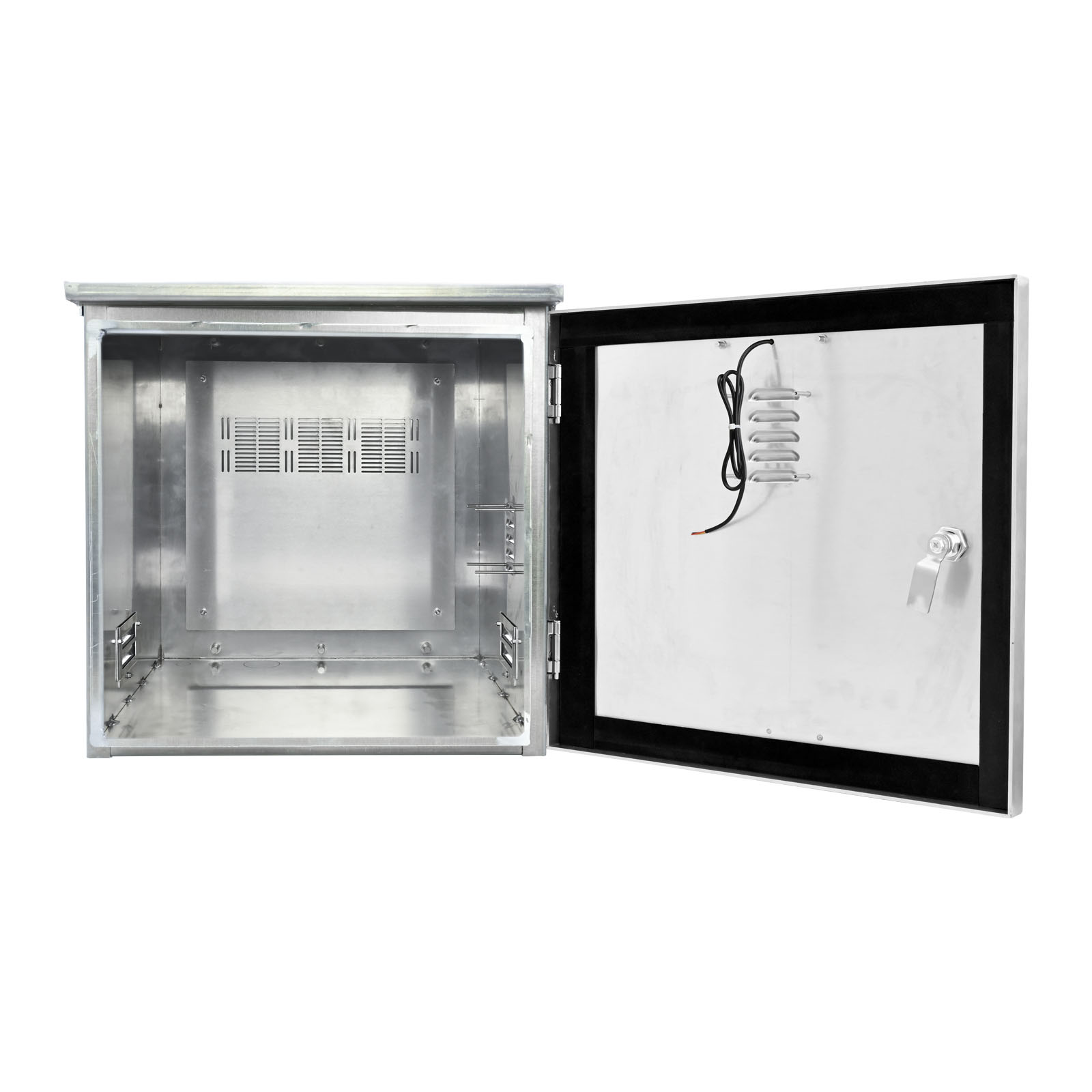

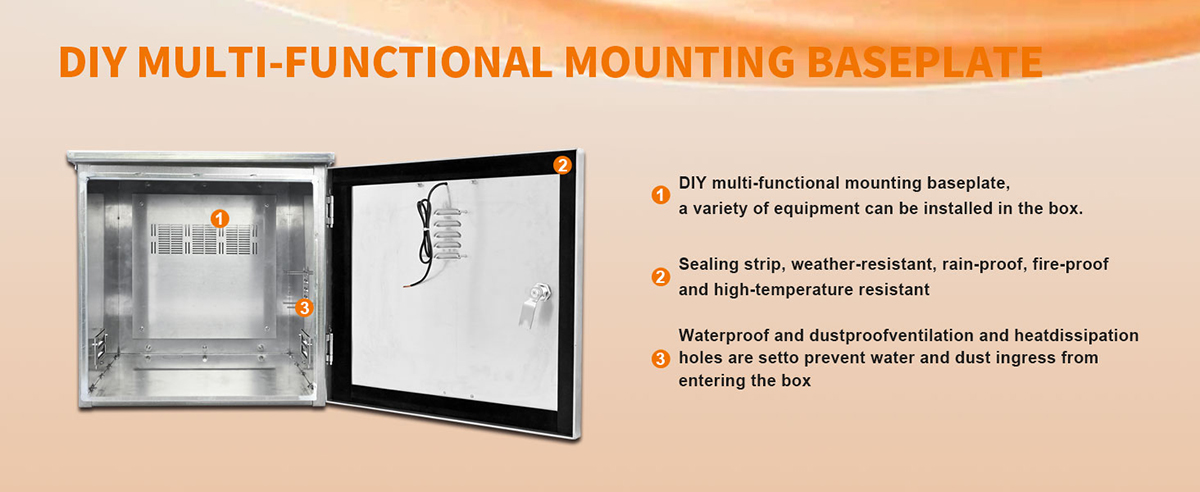

  • The mounting board has many spare holes to facilitate expanding product installation and electrical engineering wiring and tightening.

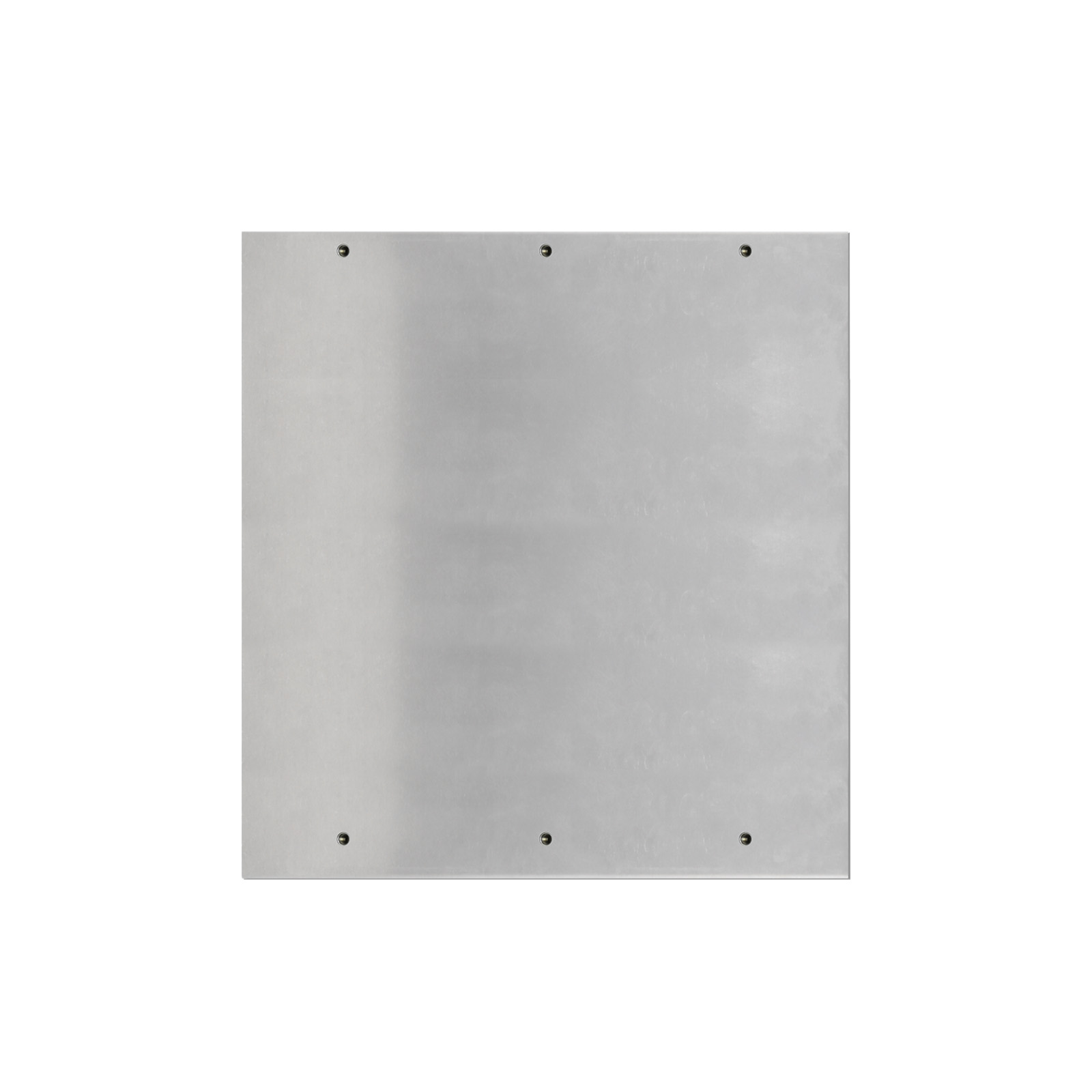

  • The back panel of the box is equipped with mounting wall holes and hoop grooves.It is equipped with galvanized

    multifunctional mounting plate.

  • 5mm all-aluminum metal made, waterproof stainless-steel lock.

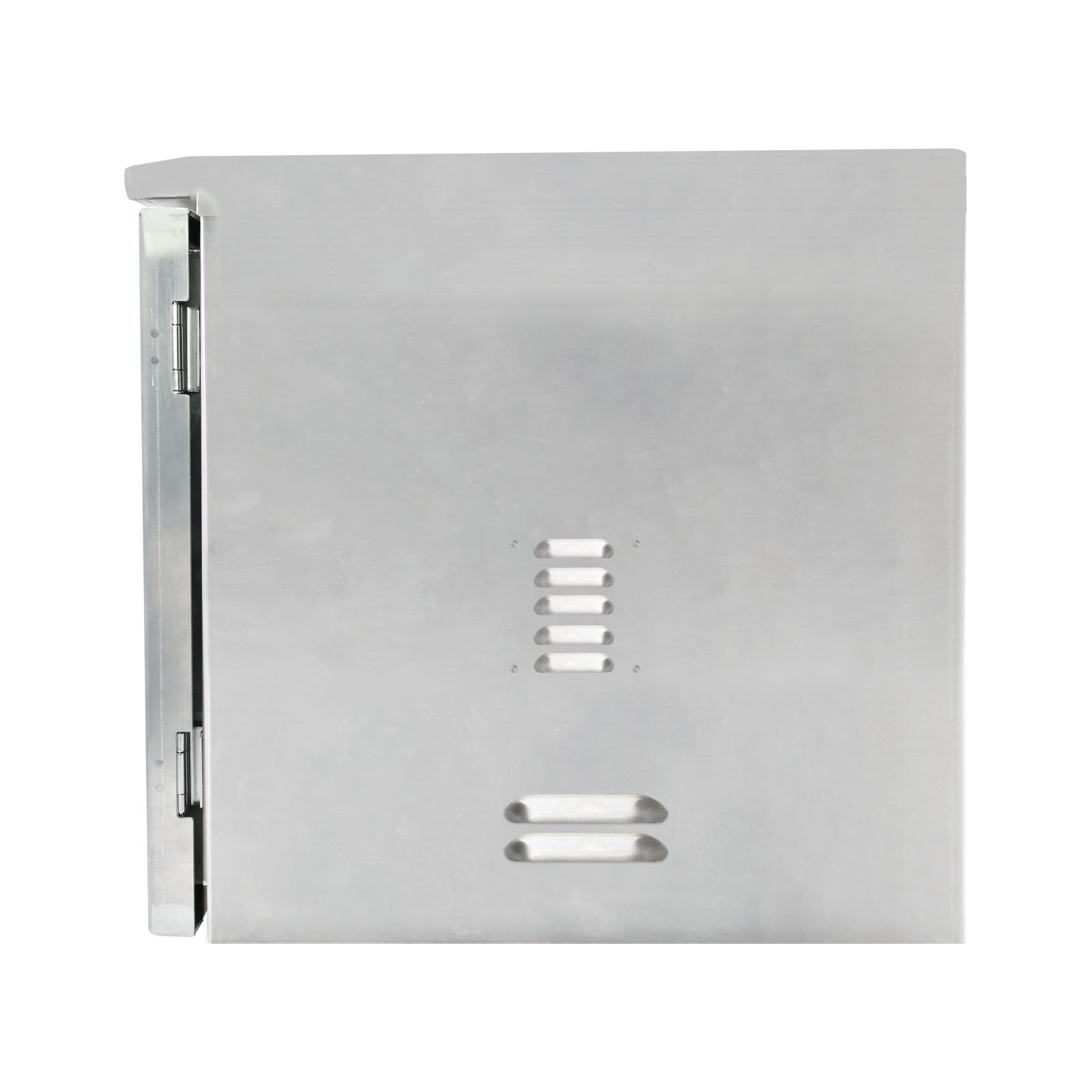

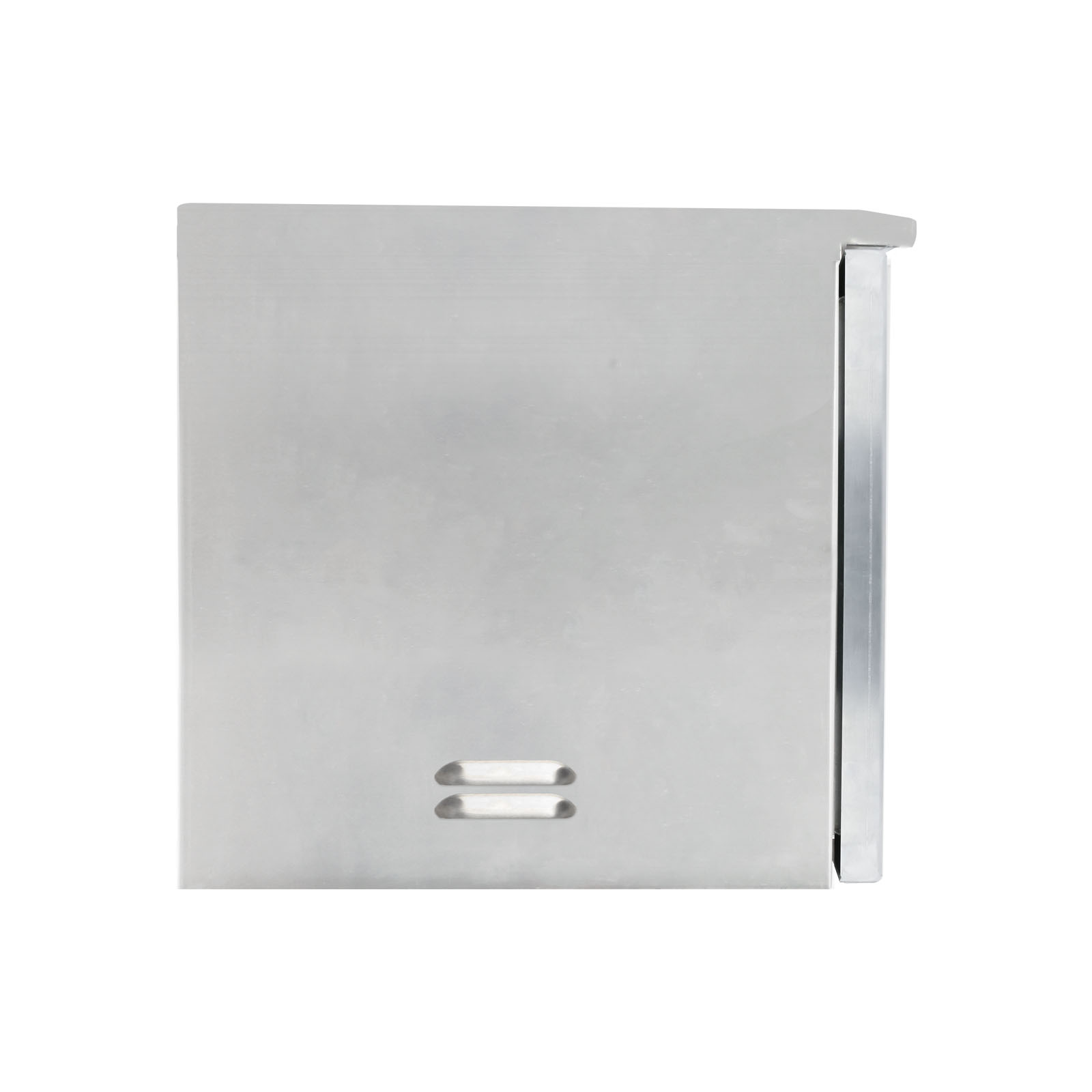

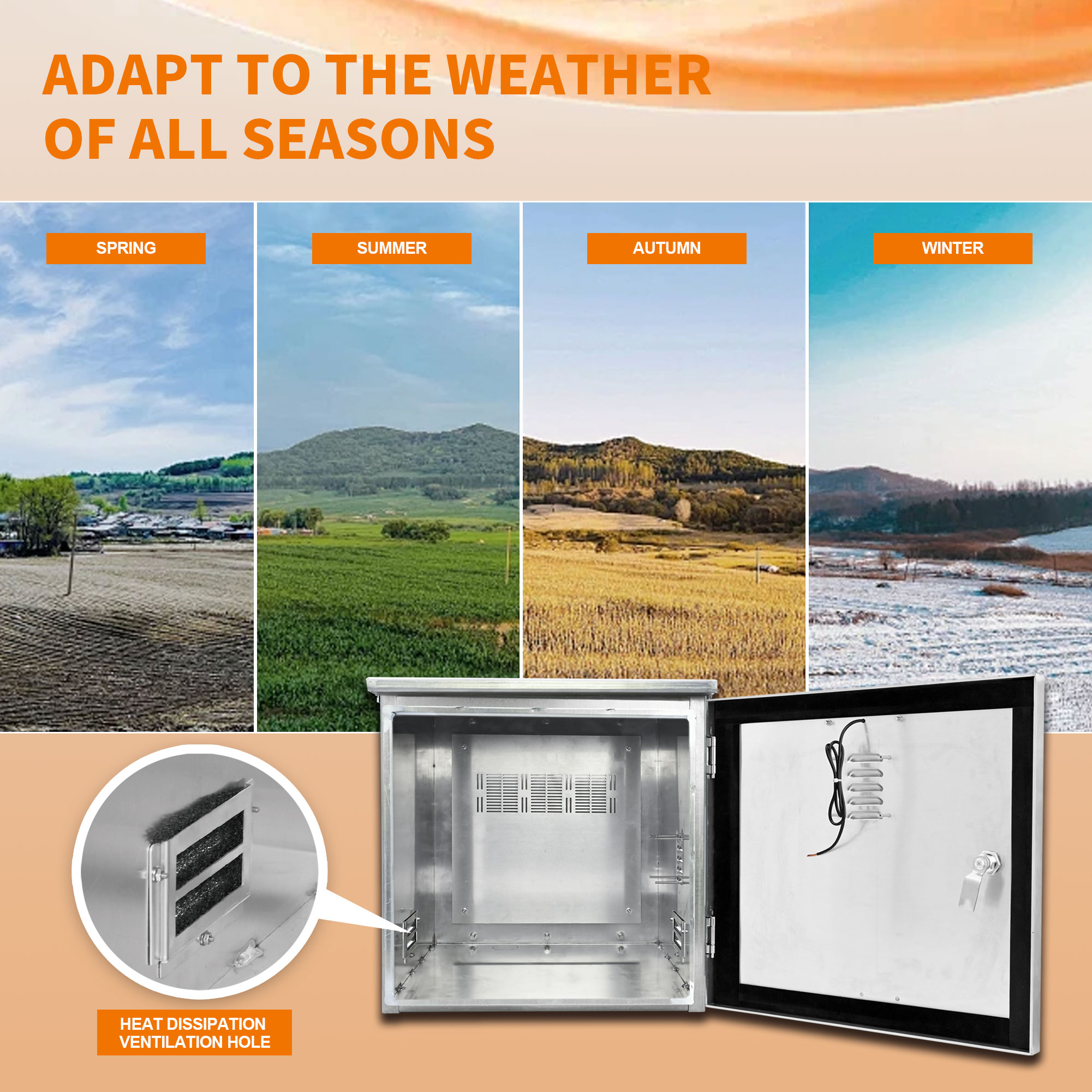

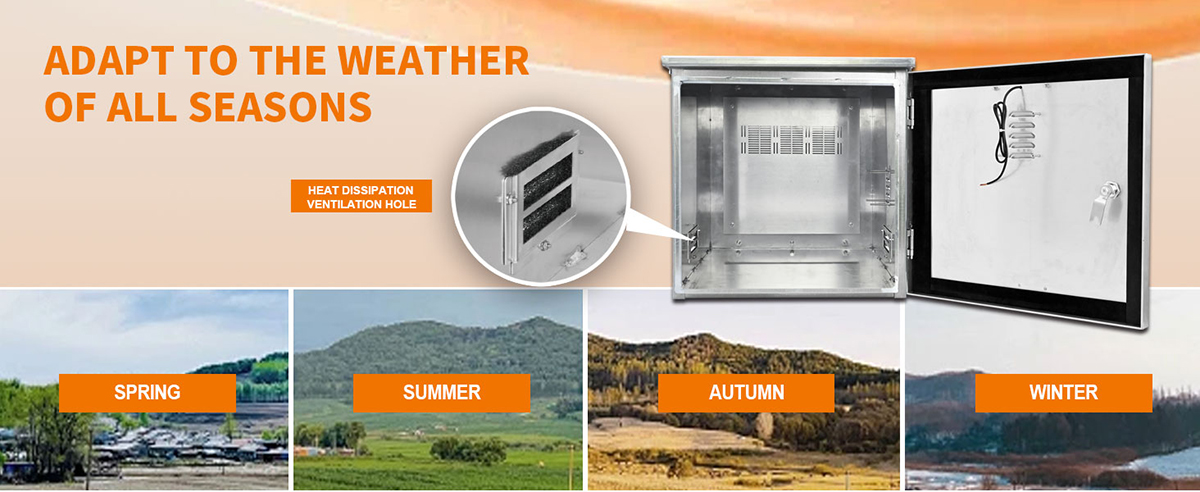

  • There are rainproof heat dissipation ventilation holes on both sides of the product,and a dust filter to block dust and

    insects from entering the box.

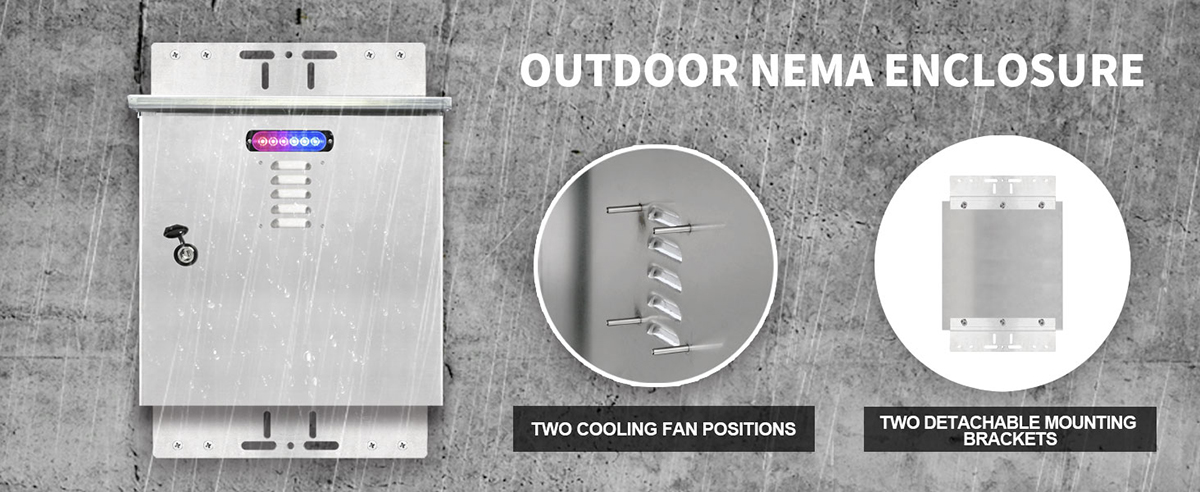

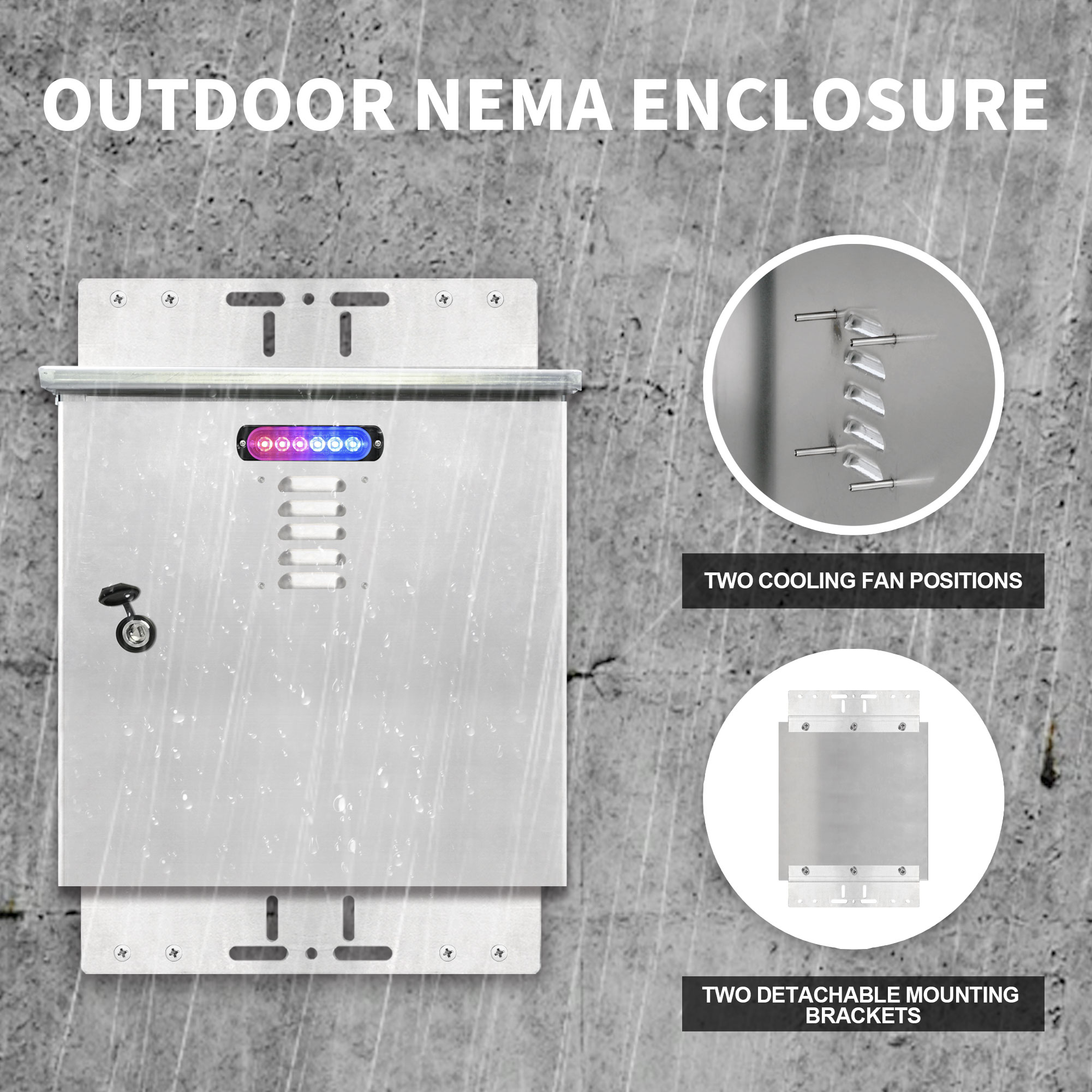

  • There are rainproof fan holes on the front and right side of the product, which canincrease the cooling fan, The fan size

    configured at the fan position is 80 x 80 x 25mm(8025 fan).

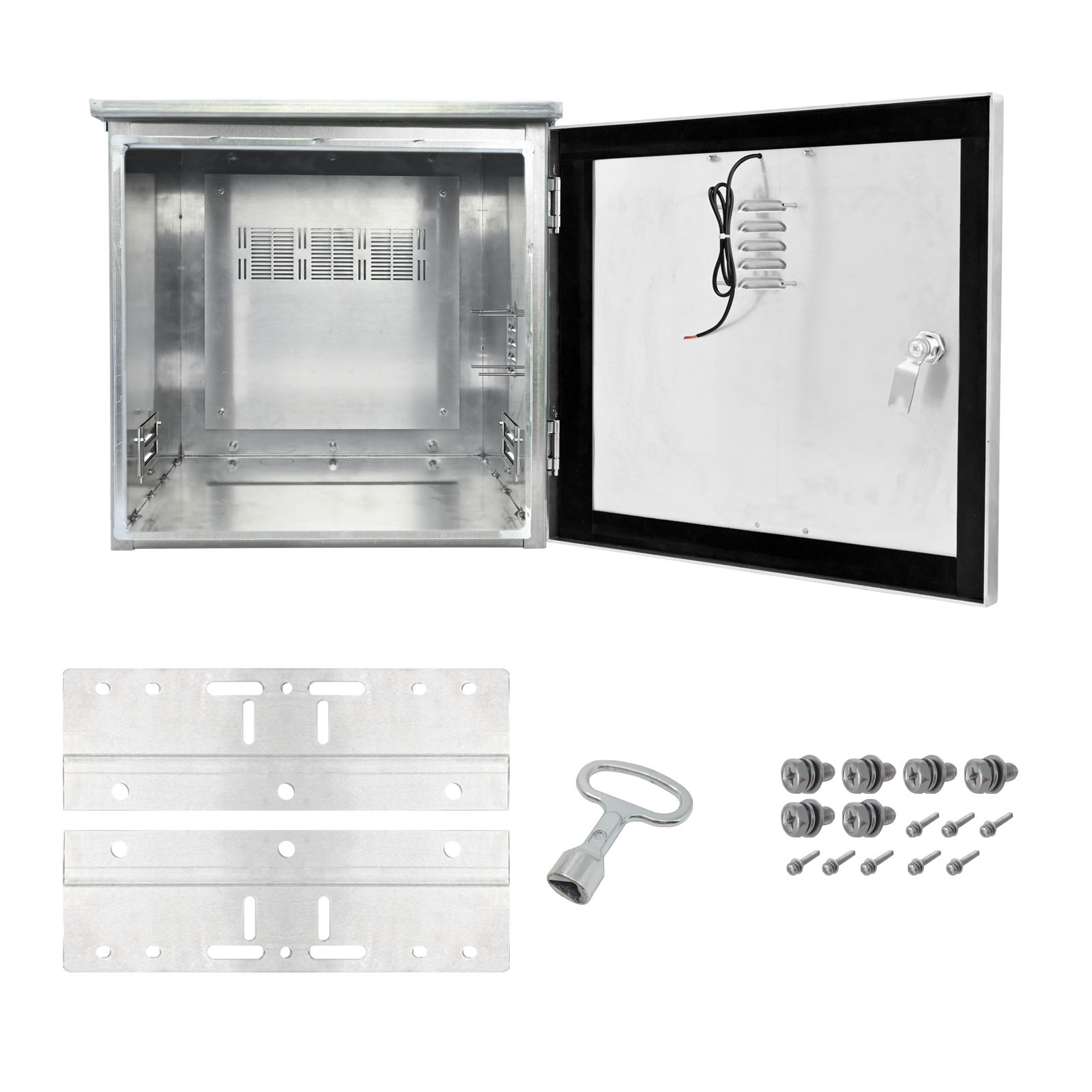

  • The product is equipped with a mounting bracket, which supports a variety of instal-lation methods such as hoop installation and wall mounting.

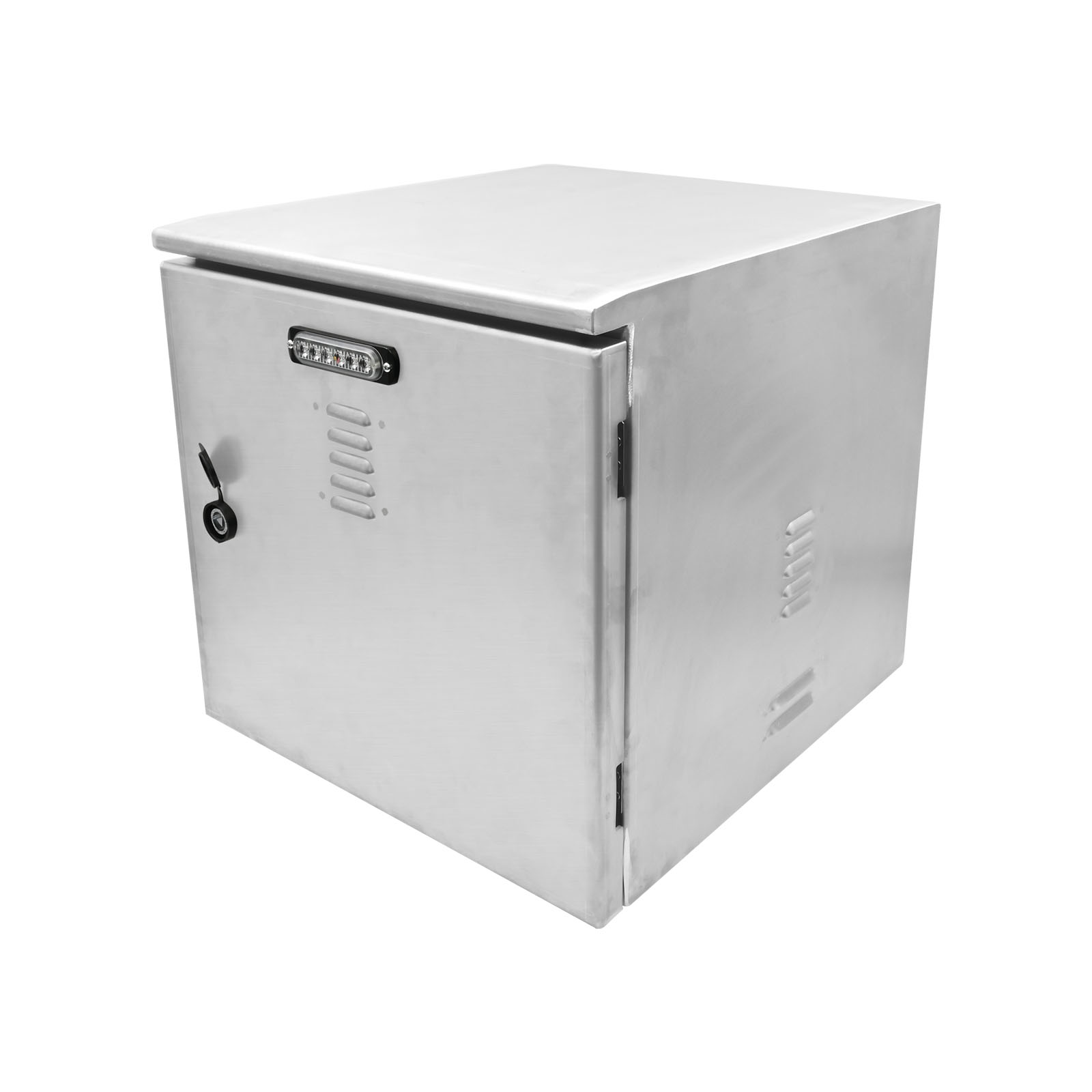

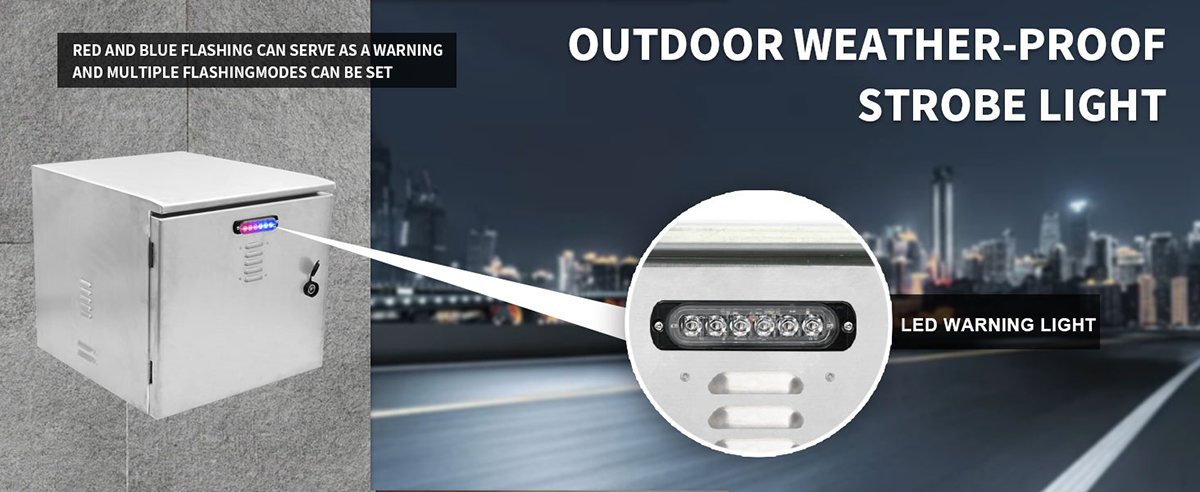

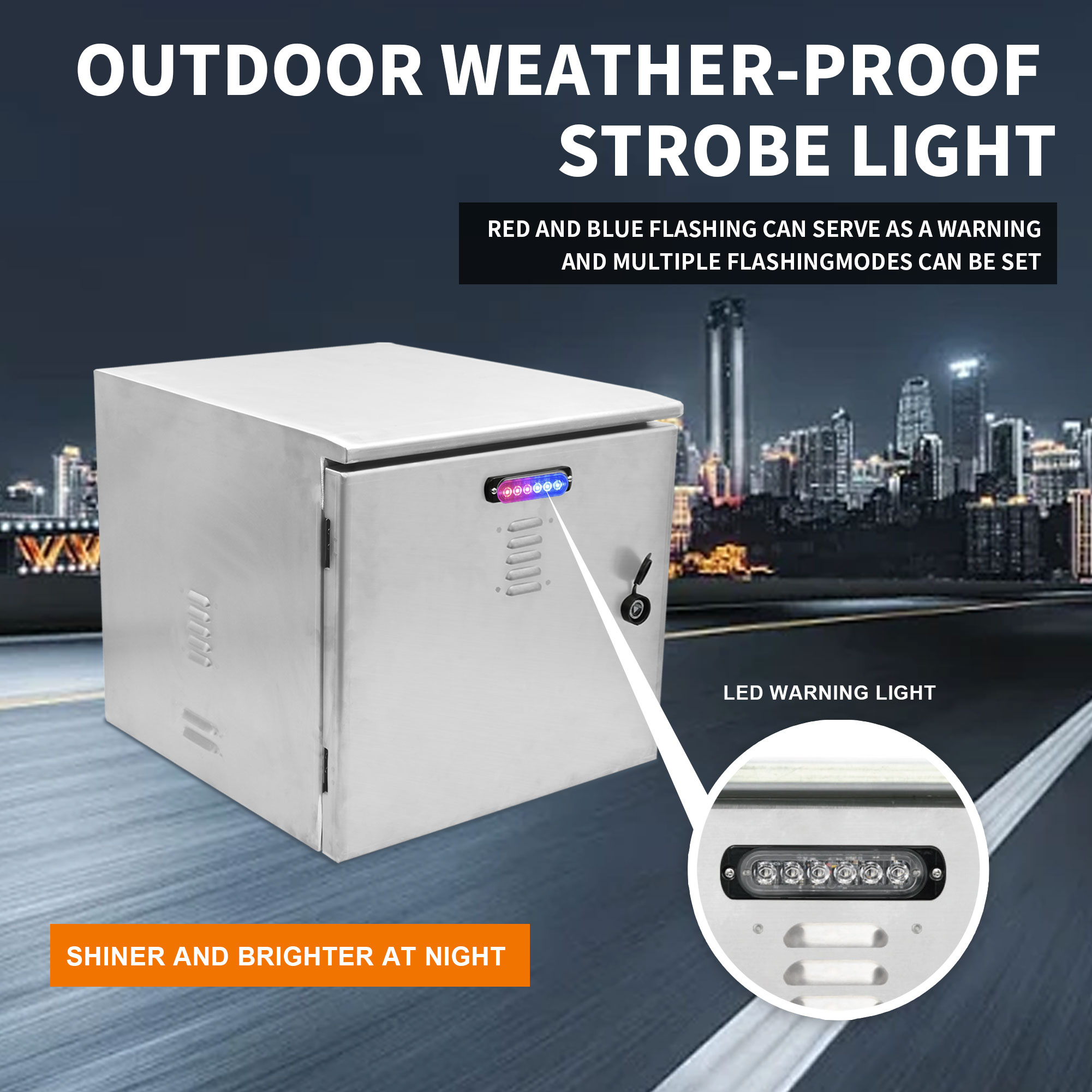

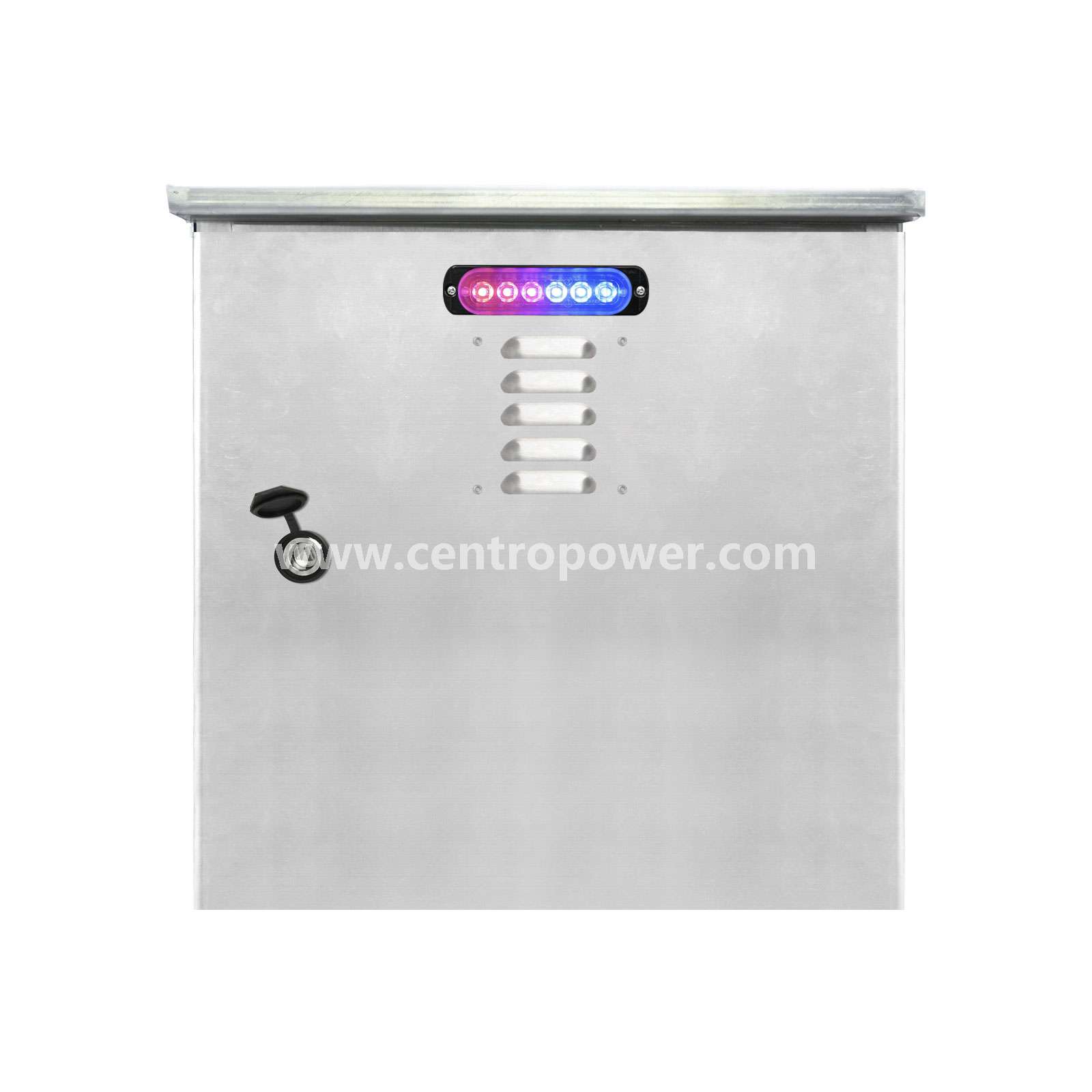

  • The front of the product is equipped with a red/blue strobe light, and the strobe lighthas multiple modes adjustable.

Product information:

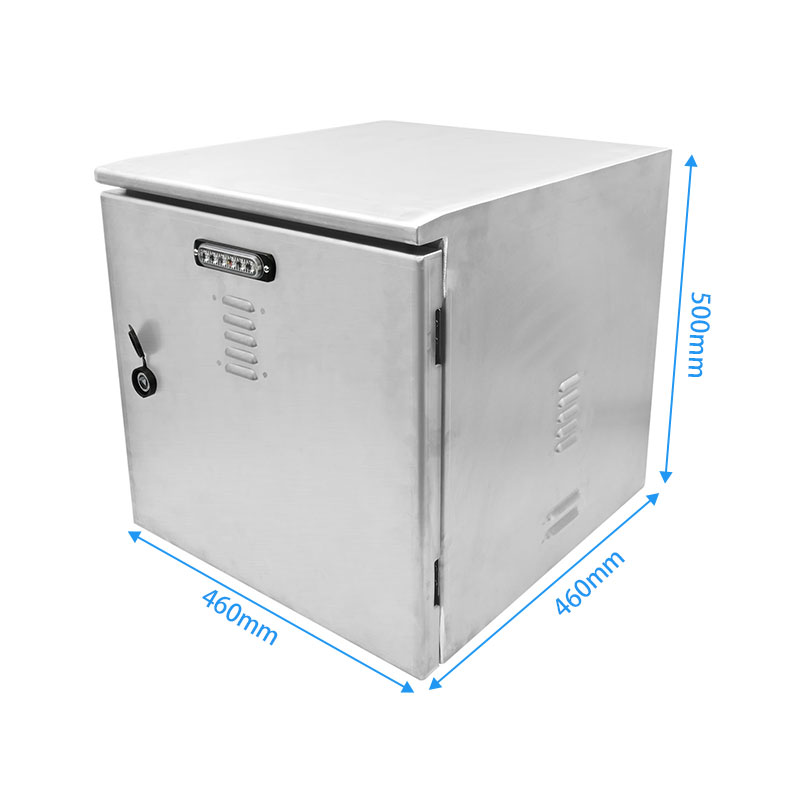

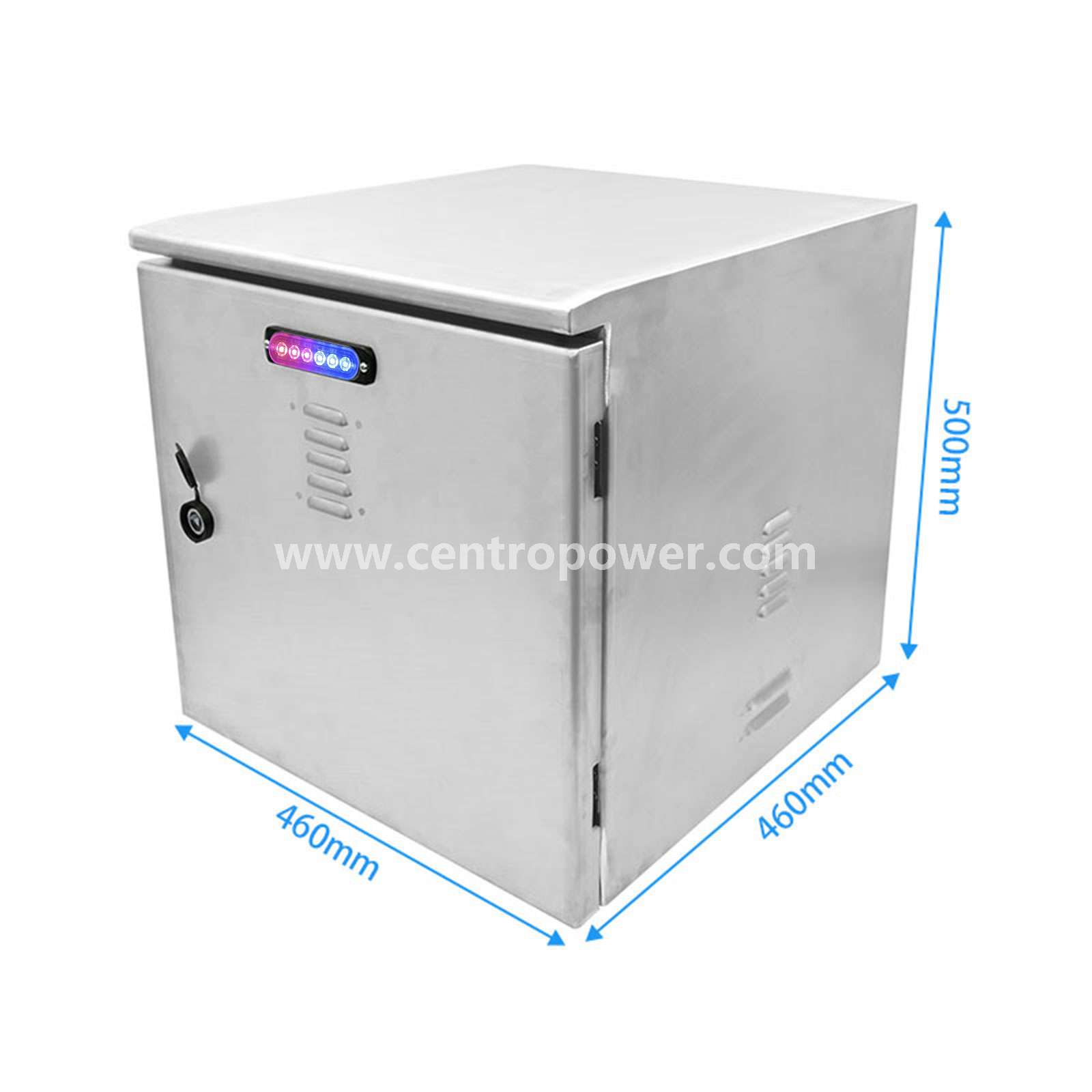

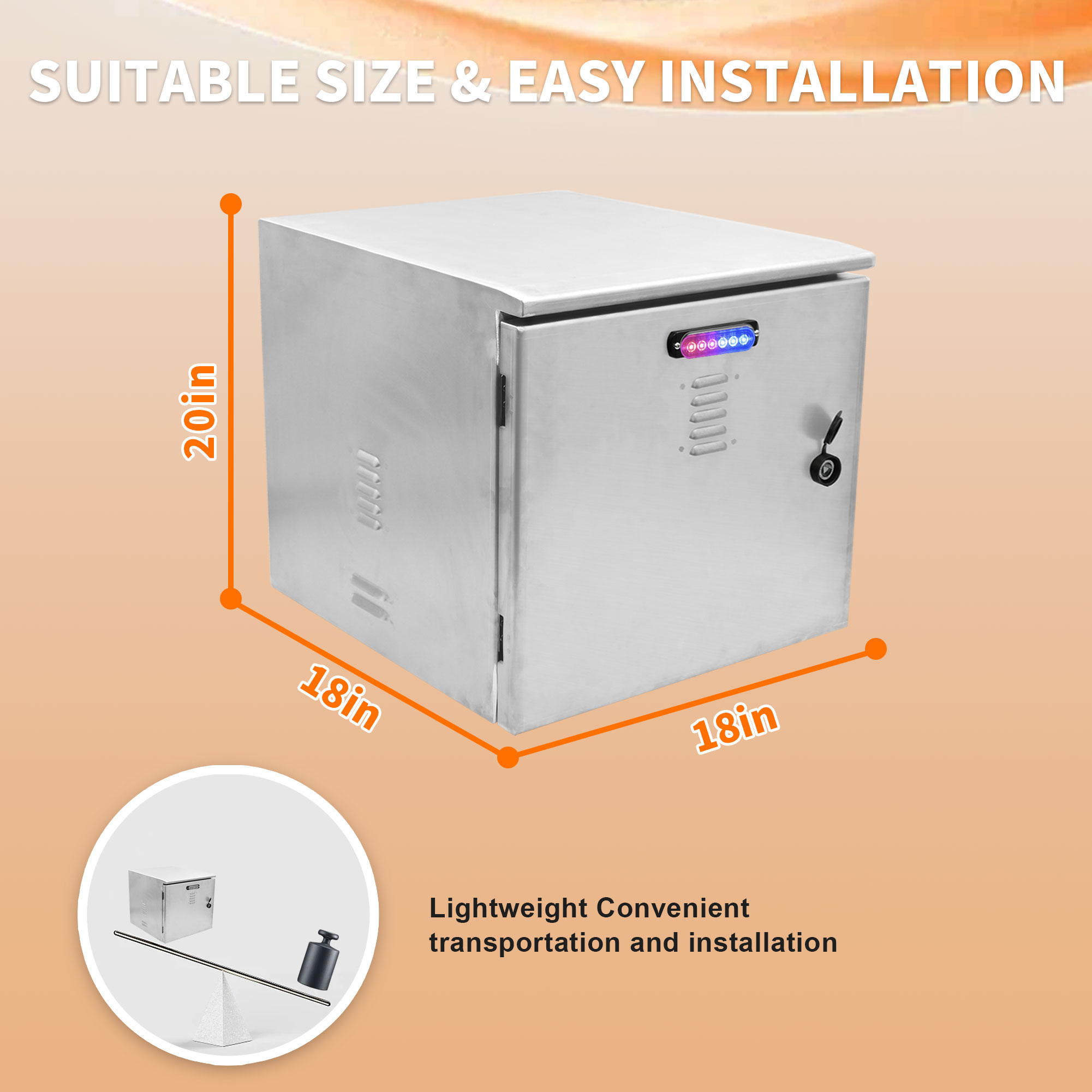

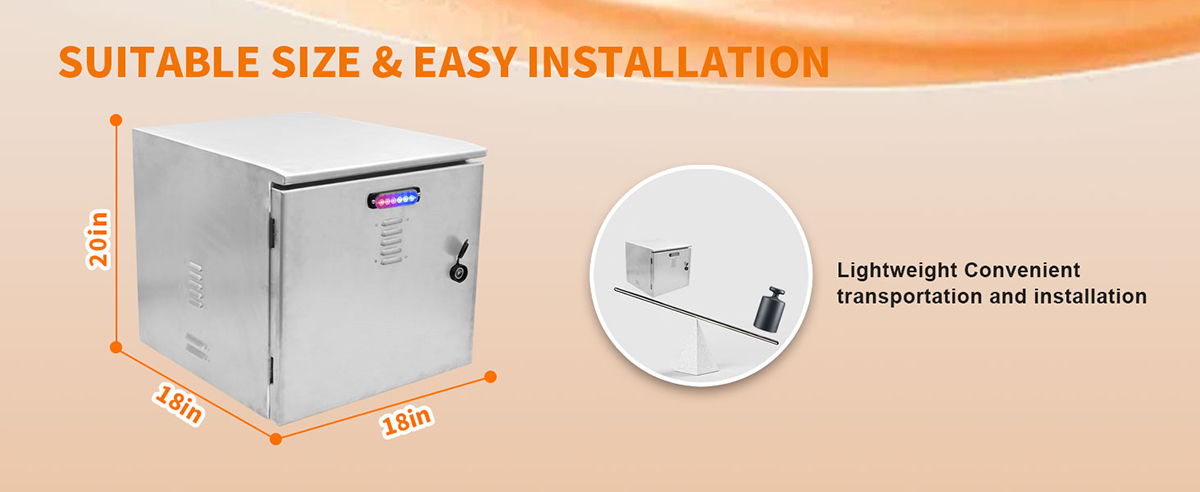

  • Size:18in(L460mm)*18in(W 460mm)* 20in(D 500mm)

  • Color: silvery white

  • Material: high-quality all-aluminum metal

  • Door lock: stainless steel outdoor waterproof lock

  • Sealing strip: EVA sealing strip

  • Strobe lights: Half red and half blue

  • M8 Screw: For fixing the mounting bracket

  • PB3*24 Screw: Used to install a cooling fan












Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
