Single Port Gigabit 48V Input Wall Mount PoE Splitter 5V/9V/12V/18V Selectable Output

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Brand CENTROPOWER
Model PoE-S911
Color Black
0755-23200933
DetailFile

Single Port Gigabit 48V Input Wall Mount PoE Splitter

5V/9V/12V/18V Selectable Output

Description：

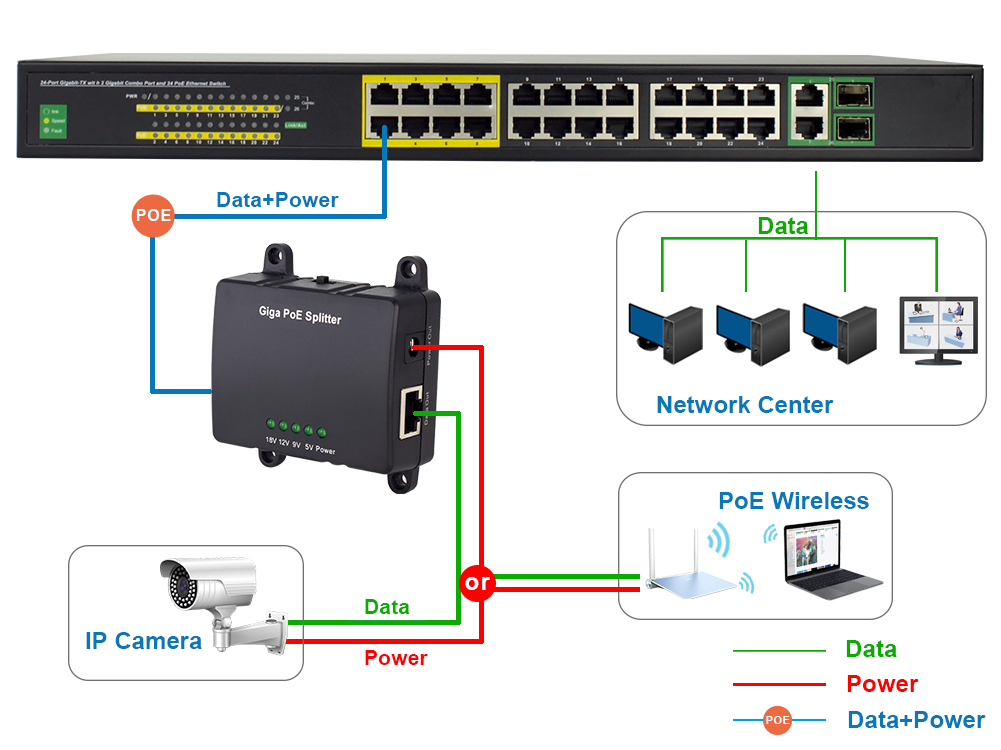

Power-over-Ethernet (PoE) eliminates the need to run DC power to other devices on a wired LAN. Using a Power-over-Ethernet system, installers need to run only a single Category 5 Ethernet cable that carries both power and data to each device. This allows greater flexibility in the locating of network devices and, in many cases, significantly decreases installation costs.

The PoE Splitter splits the 48VDC over the RJ45 Ethernet cable into 5V/9V/12V/18VDC power output. Support PoE applications in Gigabit Ethernet environments.

Feature:

  • Complies with IEEE802.3af/at.

  • Support PoE applications in Gi gabit Ethernet environments.

  • Auto-Sensing Algorithm enables taking power from IEEE802.3af/at PSE.

  • Splits the 48VDC power over RJ45 Ethernet cable into different DC output.

  • Support wide input voltage range 36Vdc to 57Vdc.

  • Maximum power output up to 30W.

  • Adjustable output 5VDC,9VDC,12VDC,18VDC.

  • Thermal cut off.

  • Short circuit protection.

  • High efficiency DC/DC converter.

  • LED indicators for power input indication.

  • Plug-and-Play.

Specifications:

ItemDescription
Ports

1 10/100/1000M RJ45 PoE Port (DATA + POWER IN)

1 10/100/1000M RJ45 LAN Port (Only DATA) 1 DC Jack (DC OUT)

Network Media

10Mbps: Cat 3,4,5 Unshielded Cable

100Mbps: Cat 5,5E Unshielded Cable

1000Mbps: Cat 5E, 6 Unshielded Cable

Pass Through Data Rates

10/100/1000 Mbps

Power OutputAdjustable 5Vdc 3A, 9Vdc 2.5A, 12Vdc 2.5A, 18Vdc 1.6A.
Input Power RequirementsDC Input Voltage: 36 to 57 Vac
IndicatorsPoE ready / in-use
Connectors

Shielded RJ-45, EIA 568A and 568B

Dimensions78x73x28mm
Environmental Conditions

Operating Ambient Temperature: 0 to 40℃

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature: -20 to 70℃

Storage Humidity: Maximum 95%, Non-condensing

Regulatory Compliance

IEEE 802.3af/at (PoE) IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet)

RoHS Compliant, CE, FCC

ElectromagneticFCC Part15, Class B





Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
