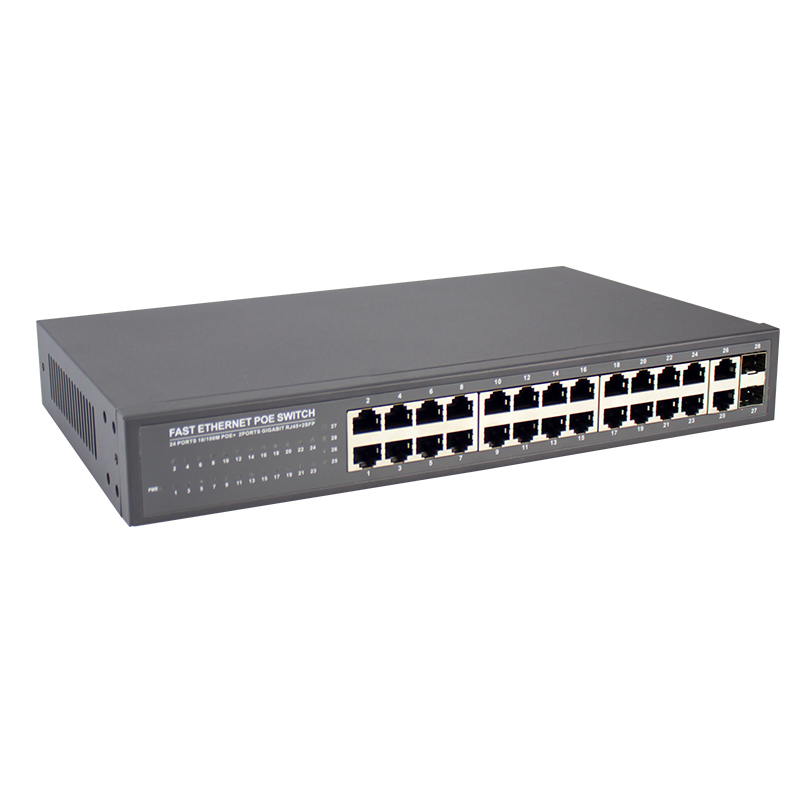

24 RJ45 10/100M ports+2 1000M SFP Unmanaged Switch
Description:
The POE-2026-24E is equipped with 2410/100 BASE-T ports featuring 30watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces, 2 10/100/1000BASE-T ports RJ45 and 2 extra 1000BASE-X SFP slots with inner power system. With a total PoE power budget of up to 250/300watts and non-blocking data switching performance, the PSE-724EP-2G2SFP-D fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.
Features:
IEEE 802.3, IEEE 802.3 u, and IEEE 802.3ab Standard.
PoE port is 10/100M RJ45 adaptive port,The 100M series up links are 10/100M adaptive ports or +SFP fiber ports,
The gigabit series up links are 10/100/1000M
Support（1~4K） MAC address.
Support for EEPROM configuration.
The standard series supports IEEE 802.3AF/AT mode.
Support switch speed limit, port isolation, extend the transmission function.
All ports support 2KV lightning protection.
Support for stack and QOS.
Wire speed forwarding, intelligent identification.
All ports support IEEE 802.3X half duplex flow control and full duplex back pressure mode.
Non-blocking switching architecture, full speed forward and maximum throughput filter packets.
Support MAC address learning, automatic adjustment of transmission mode and transmission rate.
LED indicating power supply, link and activity, provide simple working status prompt and troubleshooting.
Power input is external and built-in optional.
Standard hardware shell design, excellent ventilation and heat dissipation, make product performance more reliable, more stable.
Specifications:
| Type | 10/100M + Gigabit Uplink Series |
| Port Description | 24FE(PoE)+2GE2GX |
| PoE Port Numbers | RJ45*24 |
| PoE Port Rate | 10/100Mbps |
| Uplink Port | RJ45*2,SFP*2 |
| Uplink Port Rate | Gigabit |
| Full Power | 400W |
| MAC Address | 4K |
| Bandwidth | 12.8Gbps |
Packet Forwarding Rate | 9.523Mpps |
| Link/Act | Indicator Light On: The port is connecting |
| Indicator Light Blinks: The port is receiving or transmitting data | |
| Indicator Light Off: The port is not linked successfully with the device | |
| PoE | No PoE Indicator Light |
| PoE pin assignmnet: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature: -10℃ to 40℃ |
| Storage Temperature: -40℃ to 70℃ | |
| Humidity: 0~90%, No condensation | |
| Dimension | 440mmx290mmx44mm |
