8GE + 2GF Managed PoE Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
· Full-Managed Industrial PoE Switch
· With Console Port
· PoE Port: 8 10/100/1000Mbps RJ45 Port
· Uplink: 2 Gigabit SFP Port
· Working Temperature: -40℃ to 70℃
· PoE ports support IEEE802.3af/at
· Each PoE Port Output Max.30W
· Din-Rail Mount
· PoE Port Support AI Watchdog
· Not included power&Optical Module
Brand CENTROPOWER
Model PoE-7310-8I
Color Black
0755-23200933
DetailFile

Managed 8(GE PoE+) + 2 Gigabit SFP Gigabit Switch


Description：

The standard Gigabit PoE+ managed Ethernet switch with 8 compatible 10/100/1000BaseT(X) ,follow IEEE802.3af&at and 2Gigabit SFP slot. Port1~8 support IEEE802.3af&at.The switch ishighly flflexible, and the SFP fifiber port (after accessing the optical module)transmits data to the control center at a distance of up to 120 kilometers and has highimmunity to electromagnetic interference.Support multiple management functions, including STP/RSTP/MSTP/EAPS, Trunk, Mirror, PoE power management, PoE devicesAutomatic detection, PoE status parameter display,PoE power on and off, IGMP, VLAN,QoS, RMON, bandwidth management, and port mirroring.

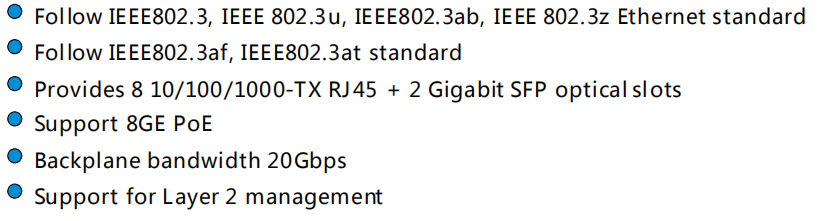

Feature:

  • Follow IEEE802.3, IEEE 802.3u, IEEE802. 3ab, IEEE 802. 3z Ethernet standard

  • Follow IEEE802.3af, IEEE802.3at standard

  • Provides 8 10/100/1000-TX RJ 45 + 2 Gigabit SFP optical slots

  • Support 8GE PoE

  • Backplane bandwidth 20Gbps

  • Support for Layer 2 management

Specifications:

ItemDescription
Port8 个10/10 0/1000 Base-TX +2GE SFP,1x console
LEDPower,RUN（system ）， PoE（Power supply）, Link/ Act（data） LED.
InputDC48~54V

Power supply (ex ternal power supply, optional)

Optional 150W to load
operating temperature-10℃～55℃.
storage temperature-20℃～70℃.
Working humidity10%～90% (No condensation).
Heat dissipation methodFanless, metal case cooling
Backplane bandwidth20G.
MAC address8K.
Flow control protocolIEEE 802.3x full-duplex flow control.
PoE
PoE -Port8 10/100/1000 Base-TX ports.
PoE standardIEE802.3af, IEEE802.3at
Poe PinV- (RJ 45 Pin 1, 2 ), V + (RJ 45 Pin3, 6).
The default management parameters
Console9600-8-N-1
Ip address（web or telnet ）192.168.0.2
userAdmin
password123








Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
