Single Port 10/100/1000Mbps PoE Extender（30W）
Description：
Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe With 10/100/1000Mbps PoE Extender, PDs (such as IP Security
Cameras, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every
extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.
PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which
simplifies installation. PoE Extender offers two 10/100/1000Mbps Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained. PoE in connection PoE Switch, 12.36 or 45.78 powered support, supportIEEE802.3af & at the power supply, PoE out for the supply terminal 1 Gigabit, PoE total power can reach 25w (PoE Switch need to provide IEEE802.3at power)
Feature:
Compatible with IEEE802.3af and IEEE802.3at
Extends the range of PoE and 10/100/1000Mbps Ethernet an additional
100 meters No additional power supply is required
Automatically detects and protects PoE equipments from being damaged
by incorrect installation
10/100Mbps Full-rate network throughout the whole extended distance Compact Size,Wall-Mountable design
Easy plug-and-play installation
Complies with 10/100Mbps Ethernet

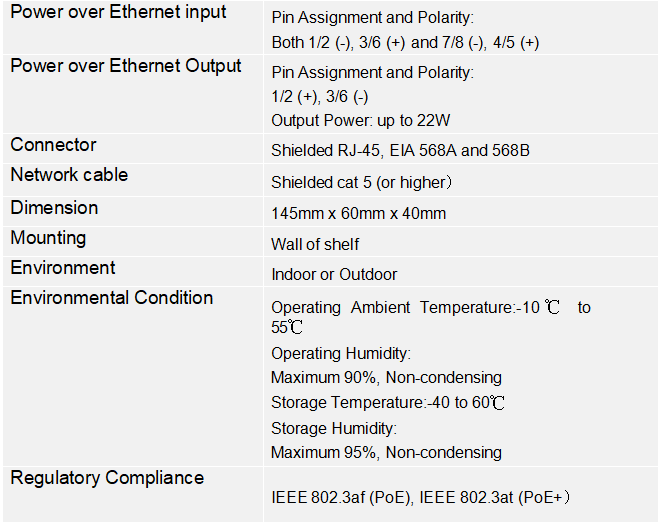

Specifications:
| Item | Description |
| No. of channels | 1(PoE IN) into 1(PoE OUT) |
| Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet Output | Pin Assignment and Polarity: 1/2 (+), 3/6 (-) Output Power: up to 22W |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Dimensions | 145mm x 60mm x 40mm |
| Mounting | Wall of shelf |
| Environment | Indoor |
| Environmental Conditions | Operating Ambient Temperature:-10 to 55℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 60℃ Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
