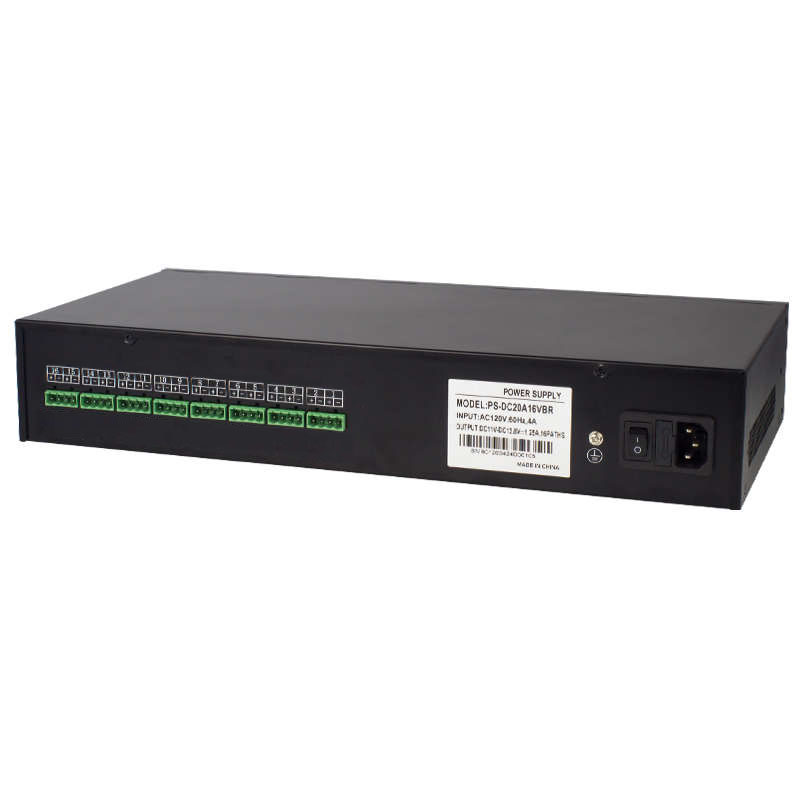

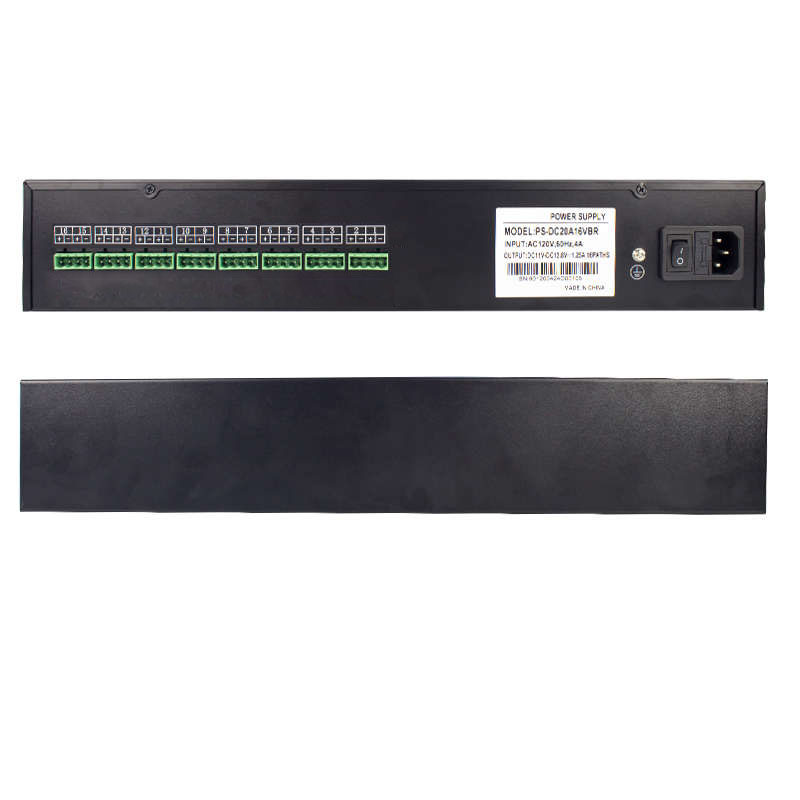

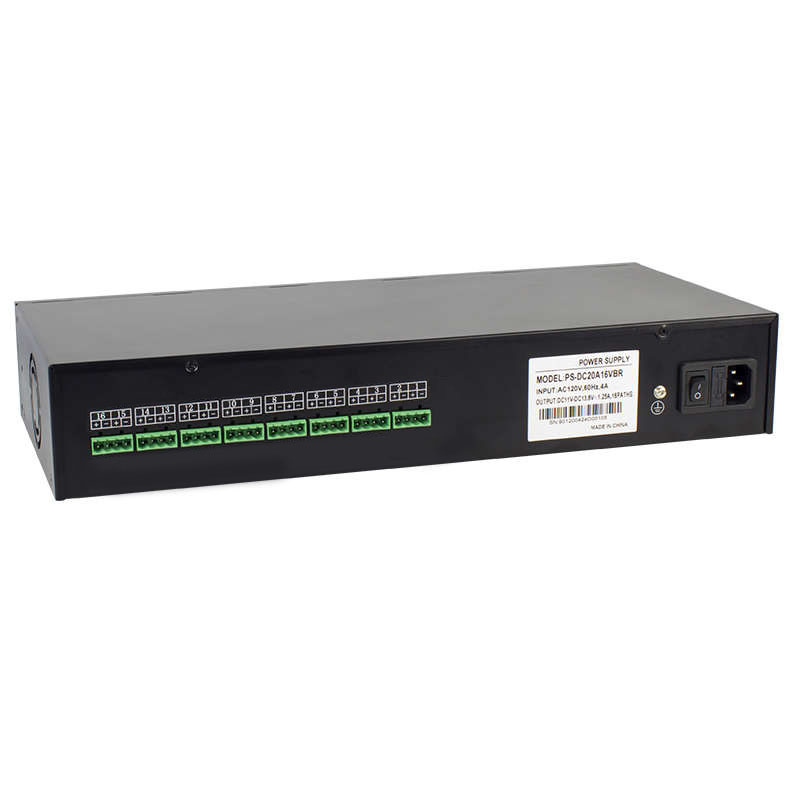

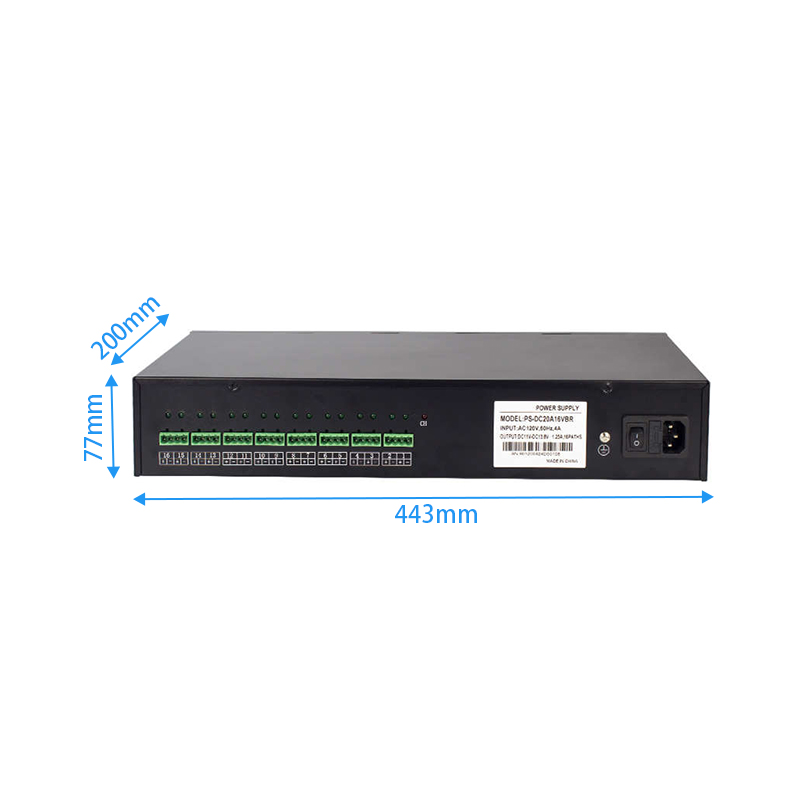

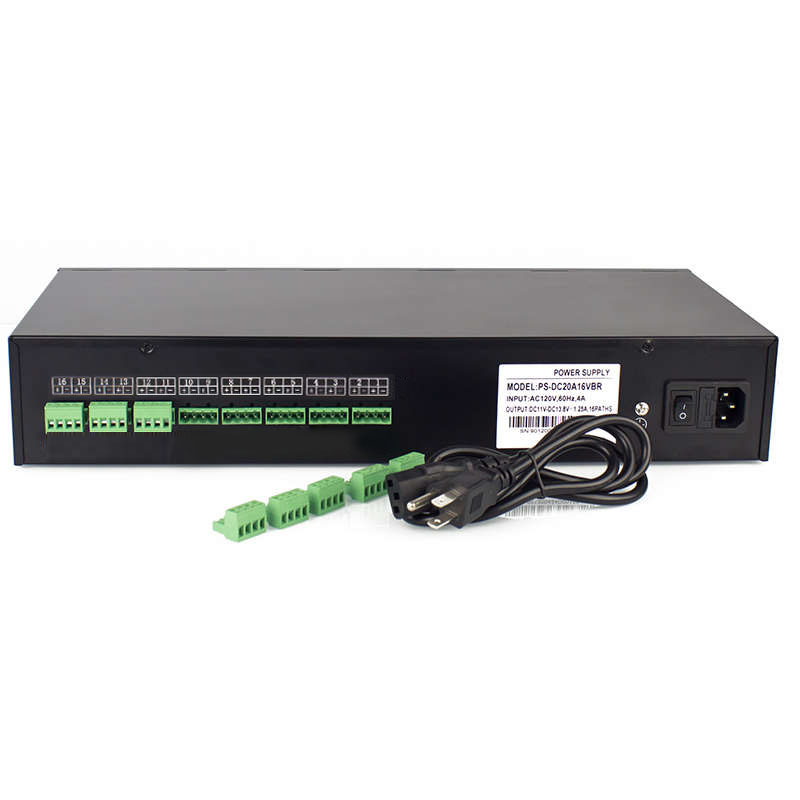

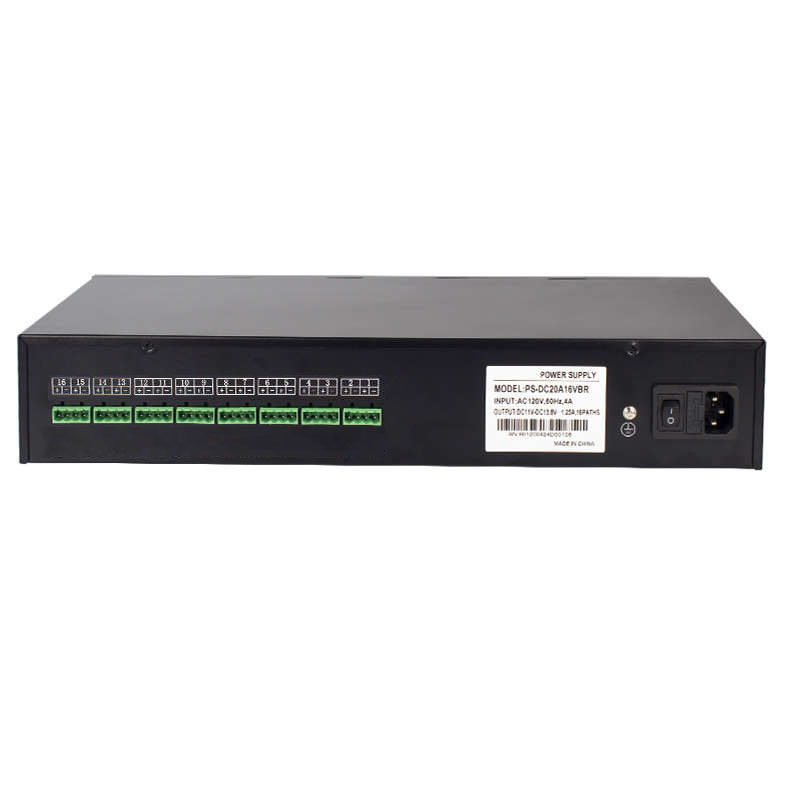

DC12 20A 16CH UPS Rack Mount Power Supply Box

Model PS-DC20A16VBR
Color Black
Spec DC12 20A 16CH UPS Rack Mount Power Supply Box

DC12 20A 16CH UPS Rack Mount Power Supply Box



  • With LED Voltage And CurrentOutput Meter.

  • Adjustable Output Voltage Up to14V.

  • Resettable PTC Fuse

  • AC110V/220V Switchable.

  • Easy plug and play.

  • -10~40℃   Operating Temperature.


Model NumberPS-DC20A16VBR
Input Voltage110V / 220V AC @50/60Hz
Output VoltageDC11V-13.8V
Total Output Current20 A
Fuse TypeResettable PTC Fuse
Output current1.25A
Over-current Protection3A±5%
Ripple & Noise100mV
Carton Dimension/
Carton Weight/pcs/carton
Size/Net Weight/
ApplicationDVR,LED Driver, Access Control , etc.

Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
