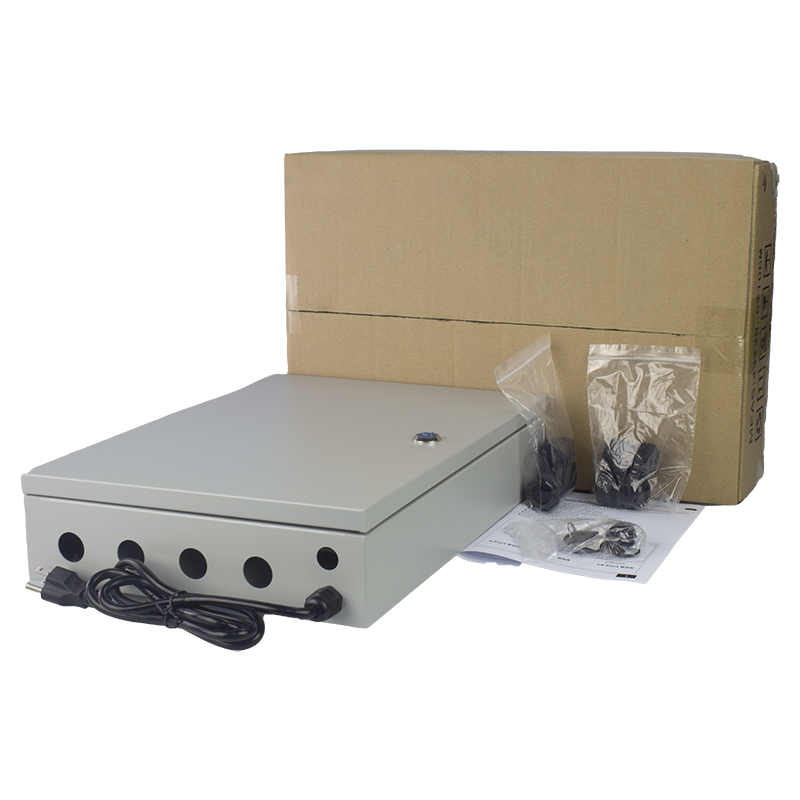

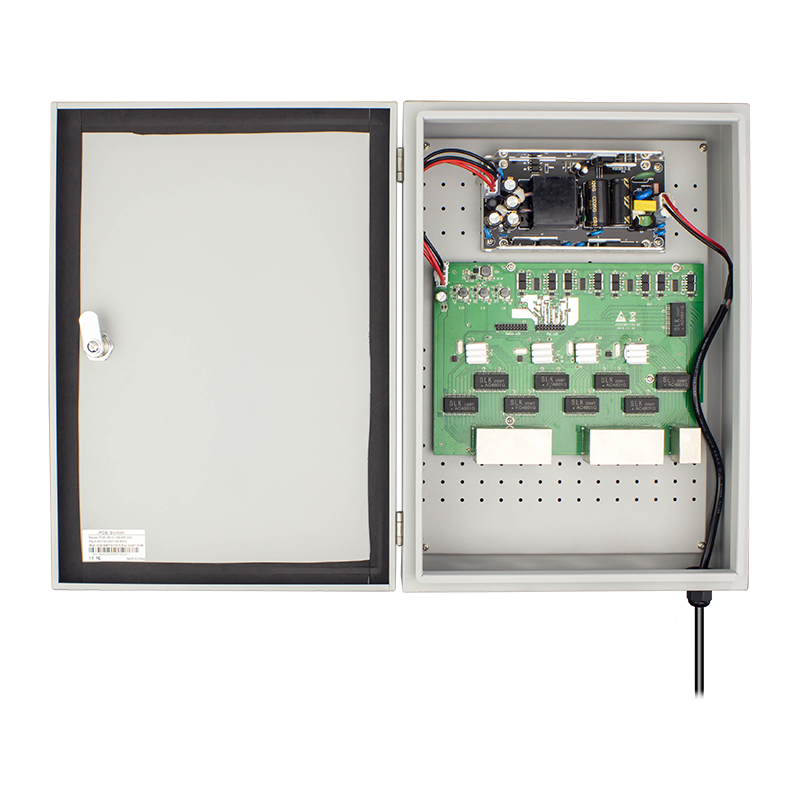

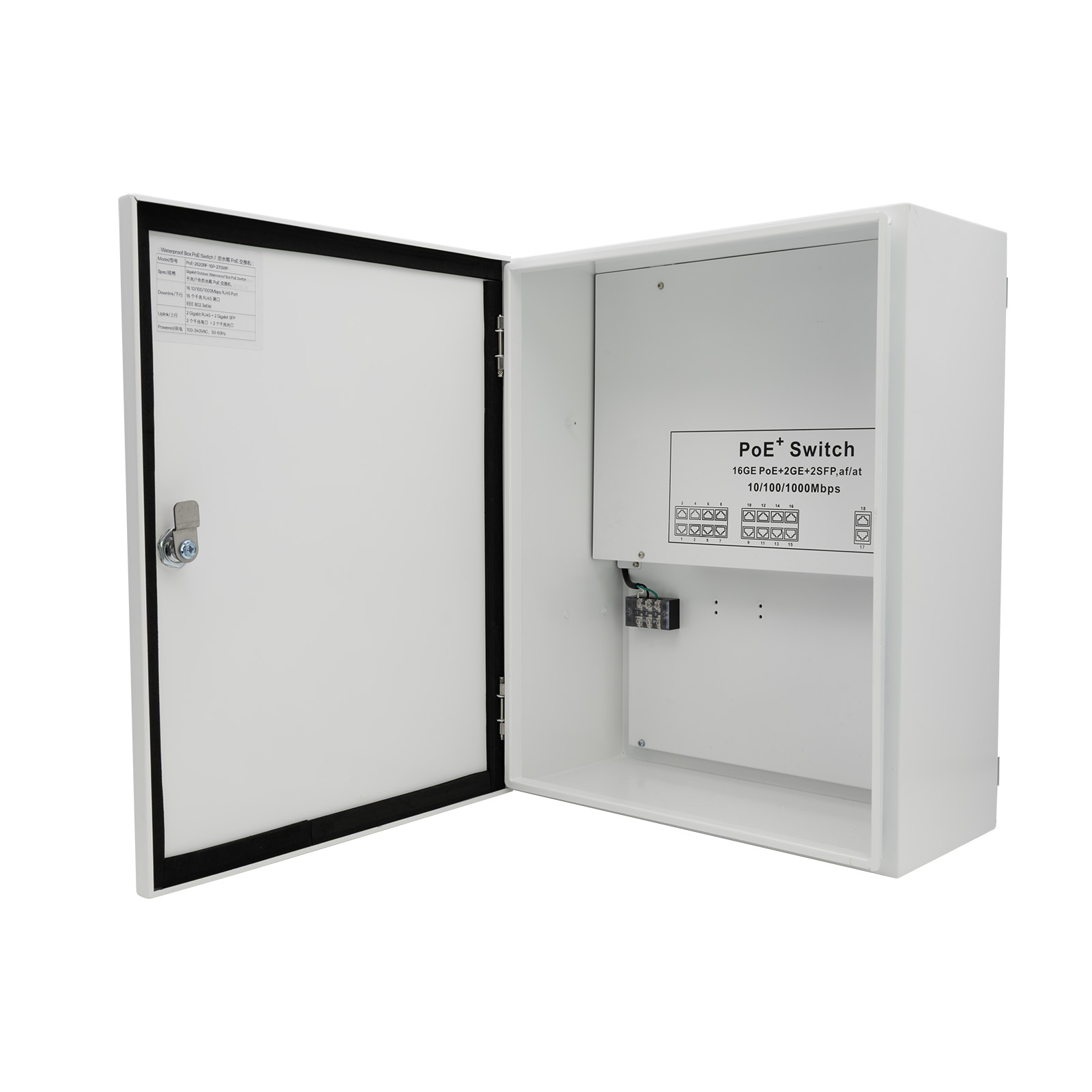

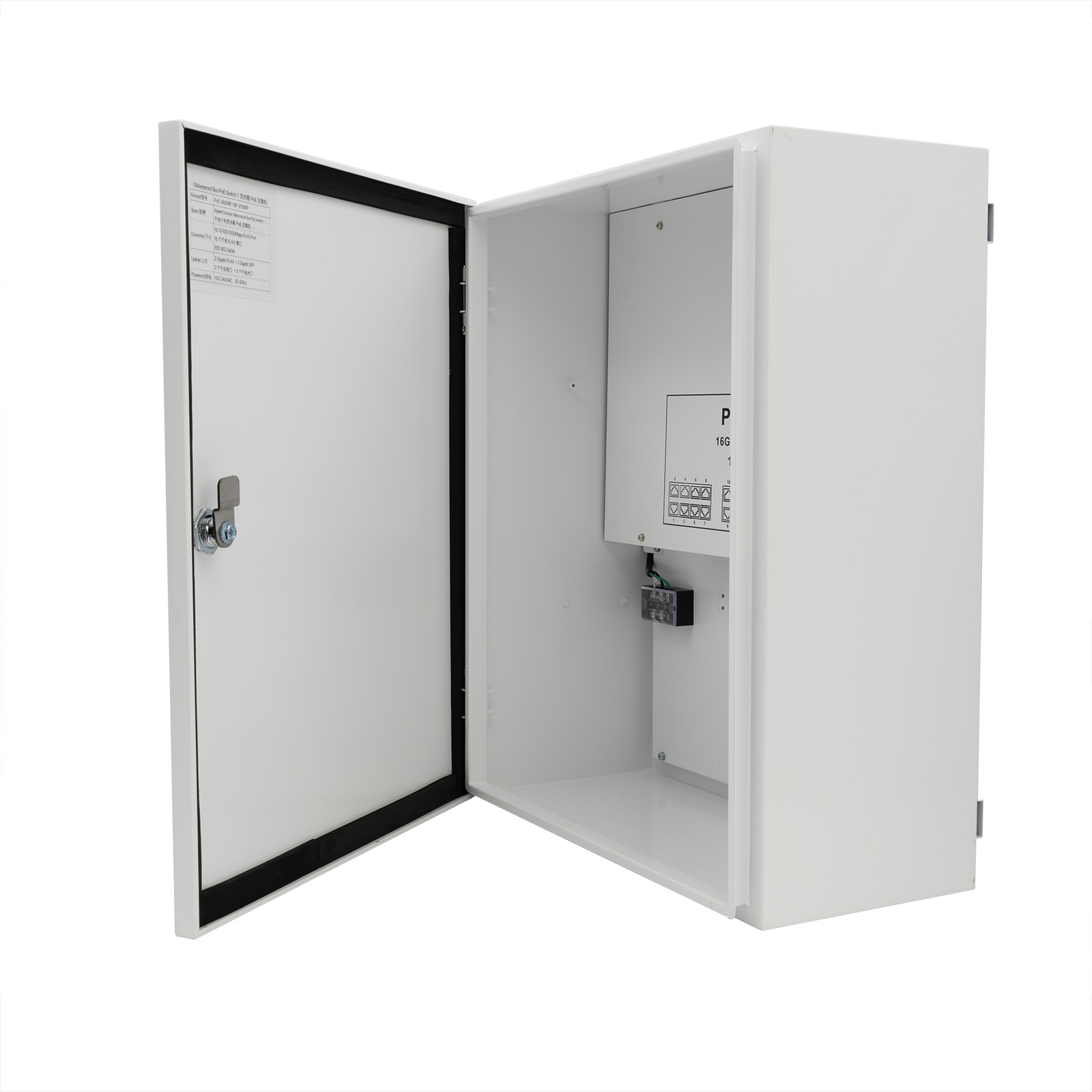

16 PoE Ports Outdoor Waterproof Box PoE Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Brand CENTROPOWER
Model PoE-20XX/26XX-16WP
Color White grey
Spec Outdoor waterproof box POE switch, optional full 100Mbps or full Gigabit, 16 RJ45 POE ports + optional uplink (2RJ45 or 2RJ45+1SFP or 1RJ45+1SFP), support IEEE802.3af/at, 100Mbps has extend version, max 250m
0755-23200933
DetailFile


16+N Outdoor waterproof box POE switch


Description:

This is a high-performance, low-ower 16 POE ports Outdoor Waterproof BOX Switch, is the primary choice forsmall and medium-sized LANs. 16 RJ45 Downlink ports (Optional 100M or 1000M) + Gigabit Uplink ports(Optional 2RJ45 or 1RJ45+1SFP or 2RJ45+1SFP).

Features:

  • Meet IEEE 802.3i, IEEE 802.3u and IEEE 802.3ab standards

  • 16 10m100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix

  • Support 2-8K MAC address

  • Support EEPROM configuration

  • Support IEEE 802.3af/at PoE protocol

  • Support switch speed limit function

  • All ports support 3KV lightning protection

  • Support stack and Qos

  • Line speed forwarding, inte1ligent recognition

  • Optical and electrical uplink port

  • All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode

  • Non-blocking switching architecture, full line speed forwarding and maximum throughput filtering packets

  • Support MAC address learning, automatically adjust transmission mode and transmission rate

  • LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting

Specifications:

ItemDescription
16 10/100Mbps PoE port Waterproof box Ethernet Switch

16 10/100/1000Mbps PoE port Waterproof box Ethernet Switch

PowerPower SupplyBuilt DC 52V 250W powerBuilt DC 52V 250W power
Voltage Range100VAC to 240VAC, 50/60Hz100VAC to 240VAC, 50/60Hz
Switch Consumption< 6W< 6W
Ethernet

Speed

16 10/100Mbps RJ45 port

Optional uplink:

① 2 10/100Mbps RJ45 port

② 3 gigabit port: 2RJ45 + 1SFP

16 10/100/1000Mbps RJ45 port

Optional uplink:

① 2 gigabit RJ45 port

② 3 gigabit port: 2RJ45 + 1SFP

Transmission DistanceRJ45 port: 100meter

SFP port: Depending on the

fiber module used

RJ45 port: 100meter

SFP port: Depending on the

fiber module used

Ethenet StandardIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
Switching capacity7.2 or 9.2Gbps36 or 38Gbps
Transfer Rate10Mbps: 14880pps

100Mbps: 148800pps

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Network

Switch

MAC Address2K ~ 8K
FunctionExtend switch on

PoE port is forced to 10Mpbs extend to 250 meters

Optional
Link/ActGreen onThe port is connecting
Green blinksThe port is receiving or transmitting data
Green offThe port is not linked successfully with the device
PoE(12,36)Orange onPD is connected
Orange offNo PD is connected or power forwarding fails

Working

Environment

working Temperature-10℃ ~ 45℃ (14℉ ~ 113℉)
Storage Temperature-30℃ ~ 70℃ (-22℉ ~ 158℉)
Humidity10% ~ 90%(Non condesing)
MechanicalDimension L*W*H380x270x105mm
ColorWhite grey











Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
