24 Port Gigabit Ethernet Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Net-2624-24P is designed for many applications such as small home offices, internet cafes, schools, and small/medium enterprises. A Full Gigabit Ethernet Switch that is designed to upgrade to Gigabit and meet High Bandwidth Requirements. This switch provides 24 10/100/1000Mbps Adaptive Ethernet Ports, and all Ports support full line speed, non-blocking switching and port auto flips functionality.
Brand CENTROPOWER
Model Net-2624-24P
Color Black
Spec 24 Ports Gigabit Unmanaged Ethernet Switch, built-in Power, Supports Three Modes(Normal Mode, Vlan Mode and Extend to 250m Mode)
0755-23200933
DetailFile

24 Port Gigabit Ethernet Switch

Features：

  • Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab

  • Provides 24 10/100/1000Base-T ports

  • High back-plane bandwidth 48 Gbps

  • IEEE802.3x Flow control

  • The switch supports one-key function conversion, currently supports three modes, normal mode, VLAN mode, extend 250m mode

  • Normal: Normal mode, no special function

  • VLAN mode: 1-22 port will not communicate with each other only communicate with uplink port 23-24. It will control the Net storm, protect the information security.

  • Extend 250m mode: 1-22 port can transmit 250 meters, when using Cat5e/6 network cable or better network cable, port 23-24   has no special function

Specifications:

ItemDescription

Power

Power Supply

Built-in power supply

Voltage Range

AC100~ 240V

Consumption

<15W
EthernetSpeed1-24 Port: 10/100/1000Mbps
Transmission Distance100Meter (328ft)
Network SwitchEthernet StandardIEEE   802.3/802.3u / 802.3ab
Switching capacity48G
Transfer Rate

14,880 pps for 10Mbps

148,800 pps for 100Mbps

148,8000 pps for 1000Mbps

MACAddress8K MAC   address table
LINK/ACTGreen OnThe port is connecting
Blinks
The port is receiving or transmitting data
OffThe port is not linked successfully with the device
Working EnvironmentWorking Temperature0℃~40℃
Storage Temperature-40℃~70℃
Humidity Non condensing0~85%

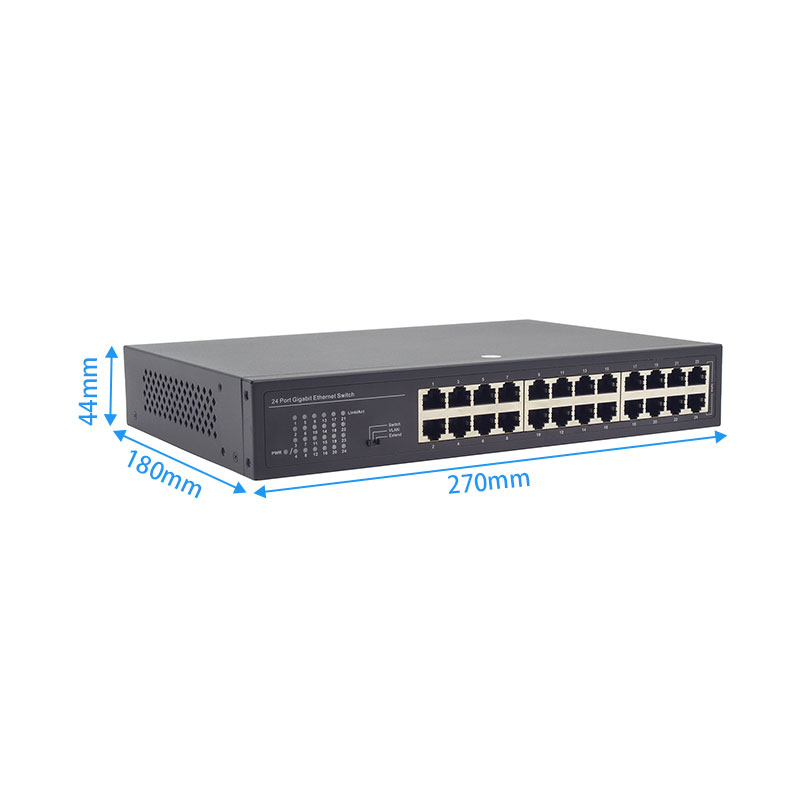

MechanicalDimension   L* W * H270x180x44mm
ColorBlack




Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
