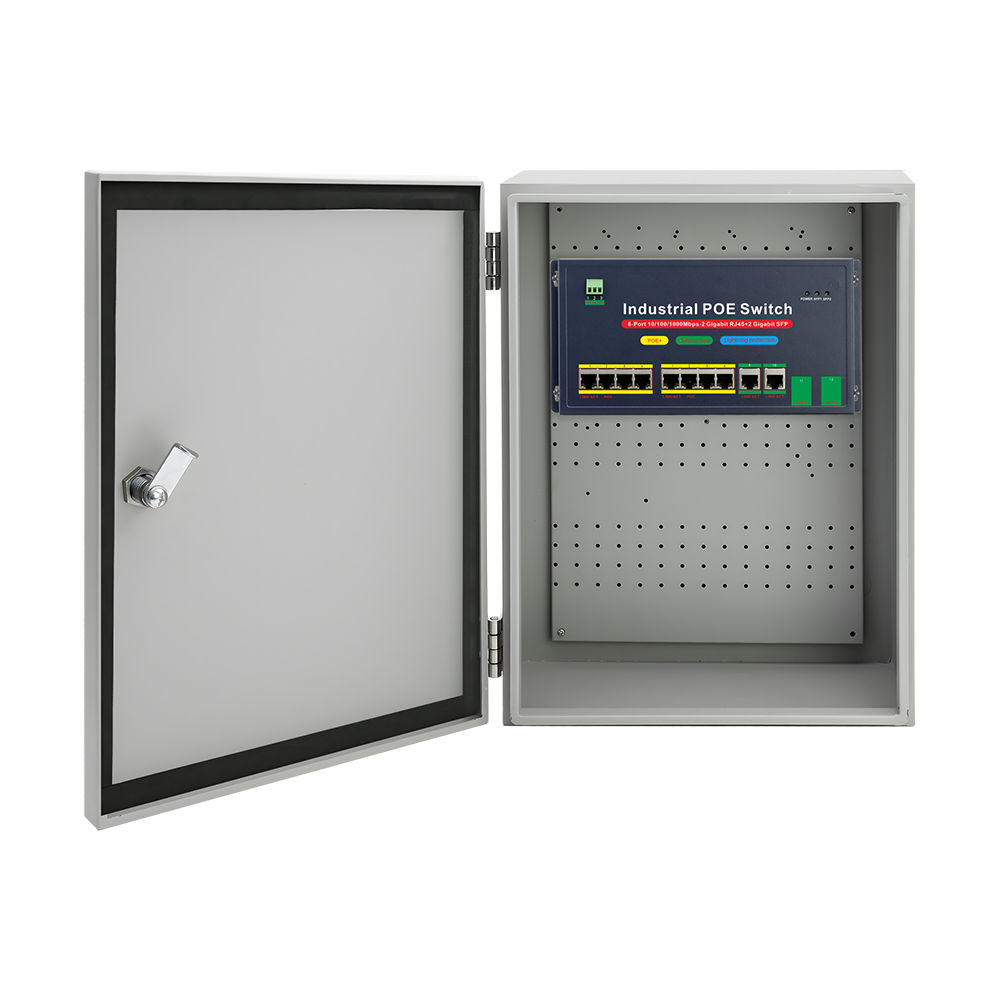

6KV 8 Port Outdoor Industrial PoE Switch
Description：

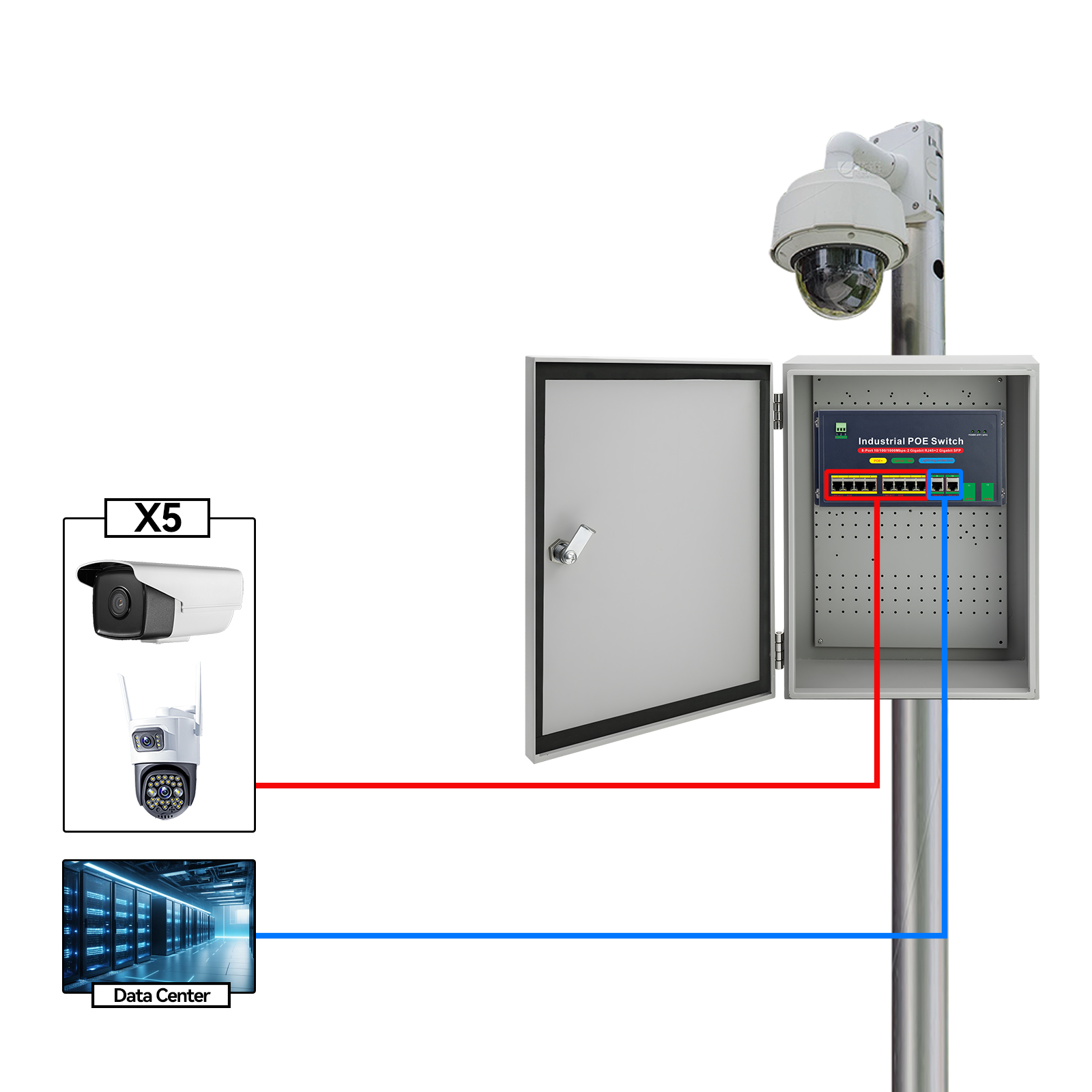

PoE-3612-8HW plug and play, 4 uplinks ports and 8 PoE ports, Each PoE port max output 30W
Features:
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
4-Port gigabit uplink: 2RJ45 + 2SFP
Complies with IEEE 802.3af/802.3at PoE End-Span PSE
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
2M packet buffer
10K Jumbo frame supports at 1000Mbps duplex mode
IEEE 802.1Q VLAN packet transparency support
Automatic address learning and address aging
Made of metal, desktop size and wall-mount design
Wall mount and bind mount
6KV lightning protection

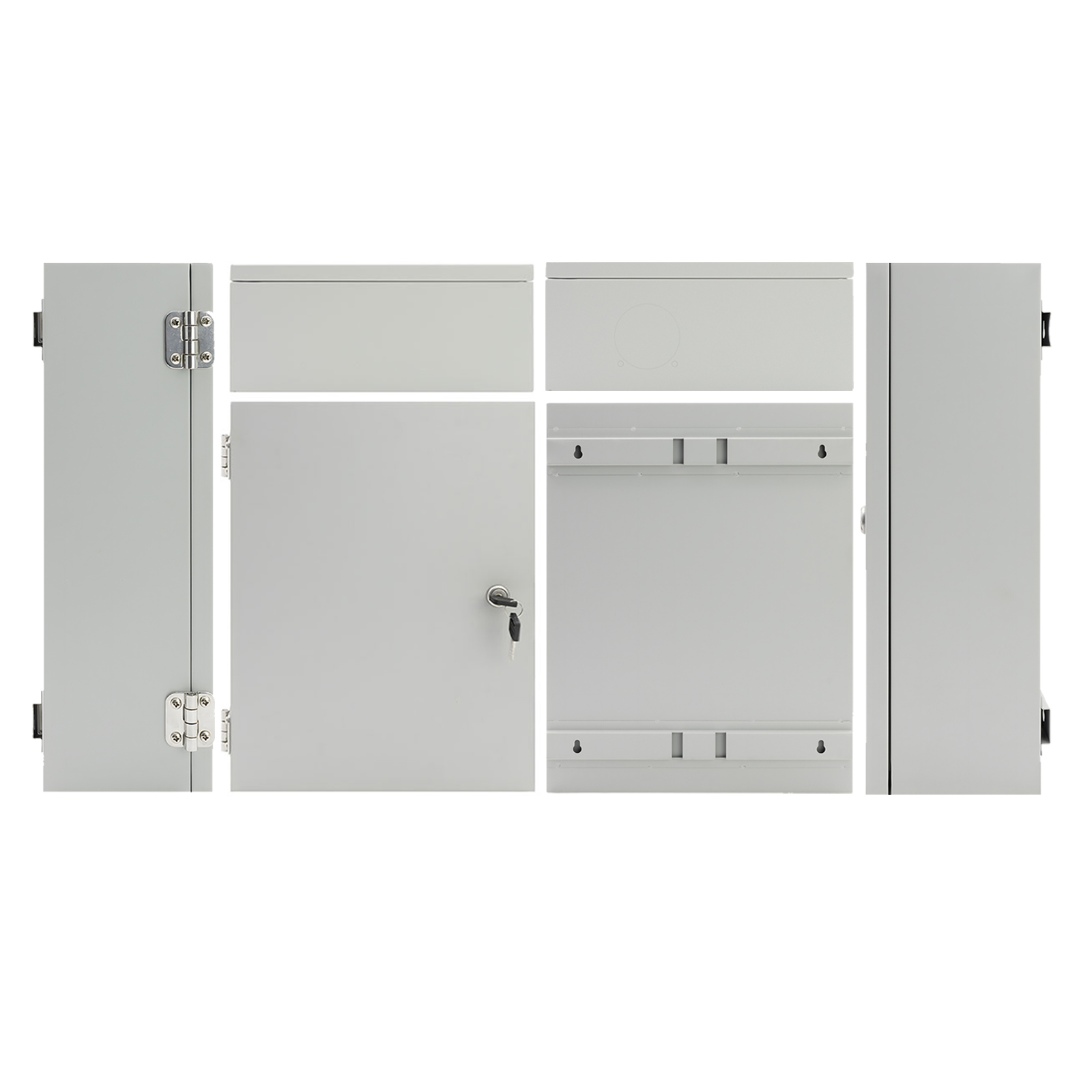

Outdoor waterproof box, IP65
Not with power supply
Specifications:
Network Port Parameter | Network Ports | 1~8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink: 2 1.25Gbps SFP and 2 10/100/100Mbps RJ45 |
Transmission Distance | 10 RJ45 Port: 0~100m cat5e/6 standard UTP cable 2 SFP: According to different of LC interface optical fiber | |
| PoE Agreement | IEEE 802.3af/at standards | |
| PoE Mode | End-span method | |
| PoE Power | Each port≤30W, Whole device < 120W | |
| Power Input | DC 48V to 56V | |
Network Switch Specification | Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Swap Mode | Store-and- forward | |
| Switch Capacity | 25Gbps | |
| MAC Address List | 8K | |
| Status Indicators | Power Indicator Light | One power light (green) |
Optical Fiber Port Indicator | One fiber link indication light (green), Green light keeps on when the fiber port is well connected | |
| PoE Indicator | 1~8 PoE indicator light (yellow light on RJ45 jack) | |
| Network Port LED | 1~10 port (green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
Protection Level | Surge Immunity | Level 3, executive standard：IEC61000-4-5 |
Electrostatic Protection | 1a touch electric discharge: level 3, 1a Air discharge: level 3 Executive standard: IEC61000-4-2 | |
Operating Environment | Working Temperature | -30℃ to 70℃ |
| Storage Temperature | -40℃ to 85℃ | |
| Humidity(noncongeal) | 0 to 95% | |

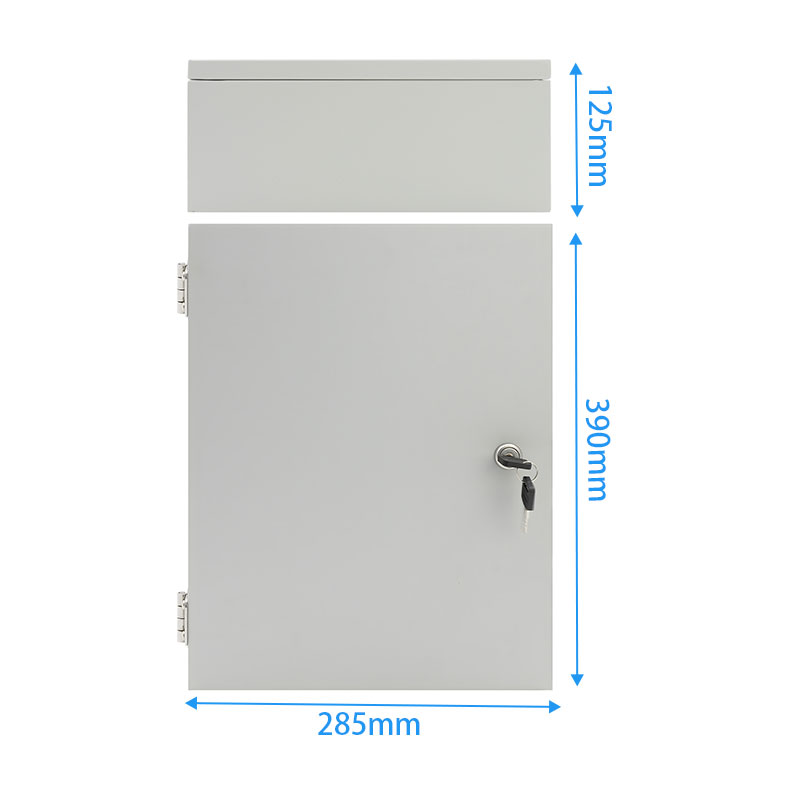

Mechanical Attributes | Dimensions | 390x285x125mm |
| Installation method | Wall mount and bind mount | |
| Color | Grey | |
| Reliability | MTBF | >50000h |
